This 10,000 BTU Ductless mini split AC with 11,000 BTU Heat Pump has two units: the compressor which sits outside of the home, and the air handler which is placed inside. A mini split air conditioner is very quiet and efficient, but it is more expensive than a window or portable air conditioner. Since they are ductless, the mini split AC/Heaters avoid the energy losses associated with the ductwork of central forced air systems.

Home > Mini Ductless Split Air Conditioners >

10000 BTU Inverter Split

Air Conditioners - Split AC's, Portable AC's, Air Cooler Source
855-382-8110
Mini Split Air Conditioners
Search BY BTU Capacity:


Inverter Systems
Single-Zone
Dual-Zone
Tri-Zone
Quad-Zone
Quint-Zone (5)
Energy Star
Temperature Control: Portable A/C's, Window A/C's, Air Coolers, Ductless Splits,
Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >
Air Purification: IONIZERS, HEPA Filters, UV-TION
Ionizers >
HEPA >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers
Humidifiers >
Dehumidifiers >

Accessories

10000 BTU Energy Star Mini Split

Price: $ Free Shipping via AIT worldwide
dotted line
9000 BTU Mini Split AC
Air Handler (Indoor Unit) : Click for Larger Image
9000 BTU Mini Split AC Digital Remote Included: Click for Larger Image

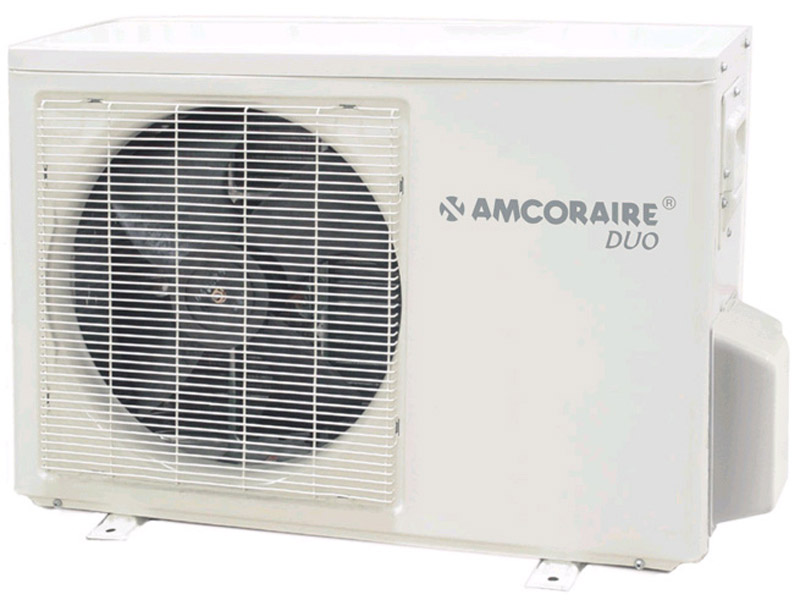

Compressor (Outdoor Unit)
Click for Larger Image
Wired Remote Reciever
Click for Larger Image
dotted line
Cooling Capacity:
Heat Pump Capacity:
Max Room Size:
Thermostat Range:
Indoor Dimensions:
Air Handler Weight:
Outdoor Dimensions:
Compressor Weight:
10,000 BTU's
11,000 BTU's
300 Square Feet
61° F - 88° F.
33 3/8" W x 9 7/8" D x 13 3/8" H
22 Pounds
35 5/8" W x 12 3/4" D x 22 1/2" H
73 Pounds
9,000 BTU Mini Ductless Split AC/Heater description

With an amazing SEER rating of 19 coupled with advanced Inverter Technology, the Amcor AMS091HX Energy Star Rated 10,000 BTU Ductless Split with 11,000 BTU Heat Pump

incorporates the most energy efficient cooling - heating system of any Mini Split in its class.  Unlike bulky wall units, only a small hole is needed to link the outdoor compressor to the stream-lined air handler mounted inside.  The noisiest and largest parts (compressor and condenser fan) are isolated outside resulting in saved space as well as less indoor sound pollution.  Split A/C’s deliver more Cooling efficiency per BTU than any other add-on-unit and match the effectiveness of central air conditioning without the expense of retrofitting ductwork.
Feature Specs for Ductless Mini Split AC
  • 10,000 BTU Cooling & 11000 BTU's of Heating Power.
  • 5 YEAR’S FULL WARRANTY ON COMPRESSOR.
  • 3 YEAR WARRANTY ON PARTS - 1 YEAR ON LABOR.
  • Includes Wired Remote Receiver - Wall Mount.
  • Patented Inverter Technology Minimizes Energy Costs.
  • Cools, Heats, Circulates Air and Dehumidifies.
  • Restart IC: Restarts to Settings Following Power Outage.
  • Energy Star Certified for Maximum Energy Savings.
  • 19 SEER: Qualifies for Federal Tax Credit. (see below)
  • Washable Screen and Cold Catalyst Filter for Hygenic Air.
  • Digital Temperature Display on Indoor Air Handler Unit.
  • Installation Kit, and all Operational Accessories Included.
  • Tech. Comes to House if Issue Arrises within 1'st Year.
  • PDF Download Download the Amcor AMS091HX Product Manual >
    Install Kit Contents
    - 25 Feet Flared Insulated Copper Tubing
    - 25 Feet Pipe Insulation
    - 4 Rubber Pads (outdoor)
    - Drain Pipe (outdoor)
    - Wall Cross pipeing
    - Remote Control w/ Wall Bracket
    - Wire Harness Between Indoor & Outdoor
    - Wire Harness Outside Unit to Circuit Breaker
    - Defrost Wire
    Install Kit Specs
    Connection Method: Flare
    Max Pipe Length: 82 ft.
    Pipe Size: 1/4 - 3/8 in.
    Service Port Connection: 5/16 in.
    Max Elevation - Distance: 25 ft.

    Electrical Specs
    Power Supply: 115 VAC / 60Hz
    HSPF: 9.0
    (S)EER: 19.0
    Power Use (Cool): Rated/Max .567 / 1.09 KW
    Power Use (Heat): Rated/Max .771 / 1.09 KW
    Current (Cool): Rated/Max 6.11 / 10.67 Amps
    Current (Heat): Rated/Max 7.8 / 10.66 Amps
    Max Overload Protection: 20 Amps
    EER Cooling / COP Heating: 13.5 / 3.6
    ETL Listed Energy Star Approved ARI Certified

    Technical Specs for Ductless Mini Split AC
    Airflow (L-M-H): 294-318-365 (cfm)
    Moisture Removal: 1.58 Pints / Hour
    Operating Range: (Cool) 5° - 131°F
    Operating Range: (Heat) 4° - 109°F
    Thermostat: 61° F - 88° F
    Inside Noise Output: 35 – 42 dB(A)
    Outside Noise Output: 57 dB(A)
    Outside Fan Speed: 400—900 RPM
    Zones (Air Handlers): Single (1)
    Indoor Fan Speeds: (RPM) 950-1150-1300
    Refrigerant: R-410A
    PDF Download AMS091HX Installation Diagram >

    Energy Star Tax Benefits

    Inverter Graph

    Ductless Inverter Split AC's

    * Warranty Details: Unit must be installed by a licensed HVAC (Heating, ventilating, and air conditioning) company to be eligible for in-house Warranty. If you receive a damaged or defective product AmcorAire will replace it with another brand new unit Free of cost. Damaged/Defective product will be picked up and a brand new exchange will be shipped once notified. Once a non defective unit is installed by a HVAC company, chances of anything going wrong with such unit is very slim. But worst case scenerio, if you still come across any issues, consumer can call the company that installed the unit (usually they will cover this FREE as it falls under installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced , AMCOR will send the part free of charge. After installation warranty ends, Amcor will also pay for the labor to replace the part for up to a year from the date of purchase. Amcor will use a flat rate chart for labor fee payment by checking the rates for these types of repairs. If the compressor is defective, Amcor will send a BRAND NEW replacement. If the indoor unit is defective Amcor will send a BRAND NEW indoor unit free of cost.
