| Main View |
Side View |
Front View |
Rear View |
|
|
 |
|
Cooling Capacity:
Heat Pump Capacity:
Max Room Size:
Dimensions (HxWxD):
Weight:
|
|
24500 BTU's
11000 BTU's
1500 square feet
18.65" x 26.25" x 26.5"
139 lbs. |
|
|
|
|
| |
 |
• Window Air Conditioner
• AAA Batteries (2)
• Top Mounting Rail
• Foam Top Mounting Rail Seal Strip
• Accordion Panels (2)
• Side Retrainer (2)
• Window Sash Seal
• Foam Seal for Bottom Rail
• Owner’s Manual |
|
|
|
|
|
 |
| The Soleus SG-WAC-25HCE combines an impressive cooling and heating capacity of 24,500 BTU's, with an efficient and effective 11,000 BTU heater, resulting in a true "all-in-one" solution for across the board climate control. Installed through the Window or Wall (PTAC). Features include 4 fan speed settings, 4-way directional air-louvers, independent fan and dehumidifier functions, a multi-function remote control, and much, much more! |
|
|
|
 |
| Brand New w/ 1 Year Factory Backed Warranty.
Targeted Heating & Cooling: 4-Way Louvers Direct Air Where Needed.
Four (4) Fan Speeds: Multiple Fan Settings Deliver Air at Desired Speed.

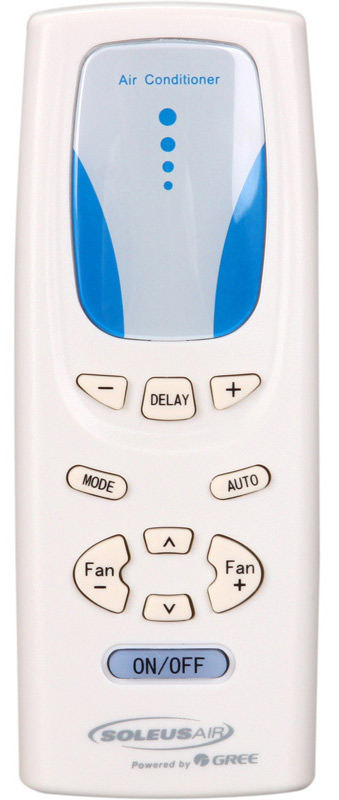

Multi-Function Remote Control: For Convenient Operation.
Digital Thermostat: Electronic Temperature Control w/ LCD Display.
Environmentally Friendly: Uses Industry Standard ECO-Friendly R-410A.
Auto / Sleep Timer: Programmable Timer Can Be Set From 1 - 24 Hours.
Cleaner Air: Washable Filter Collects Dust Particles & Prevents Bacteria.
Dehumidifier Capabilities: Removing Upto 192 Pints Of Moisture / Day!
Additional Features: Slide-Out RChassis, Auto Restart, ECO-Mode. |
|
|
|
|
|
 |
| Model: |
Soleus SG-WAC-25HCE |
| Cooling Capacity: |
24,500 BTU Cooling |
| Heating Capacity: |
11,000 BTU Heating |
| Coverage Area: |
Up To 1500 Square Feet |
| Thermostat Range: |
64°F - 86°F |
| Efficiency: |
9.4 EER |
| Dehumidification: |
192 Pints Per Day |
| Auto Timer: |
Settings From 1 ~ 24 Hours |
| Air Flow (CFM): |
400/440/480 (low/med/high) |
| Window Width: |
30" Minimum - 41" Maximum |
| Window Height: |
19.5" Minimum Height |
| Noise Level: |
< 60 dbA |
| Plug Type: |
NEMA 6-20P |
| Power Supply: |
230/208V ~ 60Hz |
| Cooling Power: |
2660/2630 Watts ~ 12/13 Amps |
| Heating Power: |
3680/3030 Watts ~ 16/15.6 Amps |
| Dimensions: |
18.65"H x 26.25"W x 26.5"D - 139 lbs. |
|
|
|
|
|
|
| |
|
|
