T6E19S-H236 36000 BTU Mini Ductless Split Air Conditioner 3 TON

Thermocore T7HH20S-H236 Ductless Mini Split Wall Mount - 36000 BTU Cooling Capacity along with a 36,000 BTU HYPER Heat Pump, this 3 TON Energy Star Ductless Split can cool or heat an area up to 1500 ft². Advanced INVERTER DC Technology provides both energy efficient operation and low ambient operation start-ups down to -22F. Additional features include auto-diagnostic functions and sleep mode / 24 hour timer and . Comes pre-charged with R454B for 25ft of Lineset.

Home > Mini Splits > 3 TON >
T7HH20S-H236

855-382-8110

Home - About - SiteMap - Contact

Search BY BTU Capacity:

Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Electric Heat Ele>

Ionizers >
HEPA >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers

Humidifiers >
Dehumidifiers >

System Includes:

Indoor Unit - Air Handler

Outdoor Unit - Condenser

Digital, Multi-function LCD Remote Control

15ft lineset/15ft wire included.

Extend linesets & wire using dropdown menu

1 Yr Part, 5 yr Compressor Warranty

36000 BTU AC - HYPER Heat : 20 SEER
Price:	$2159.45

Select your choice of length for BTU:

36k: Select to add wire

Top Line Features:

20 SEER - 10.5 HSPF - AHRI CERTIFIED

Pre-Charged w/ Eco-friendly R454B Refrigerant

Includes Anti-Fungus Bacterial Filter as Bonus

I-Feel / Follow Me Technology Tracks Remote

HYPERHEAT TECHNOLOGY: -22F Ambient

WIFI compatible: operate via remote or Application

Easy Maintenance - Panel Removes for Access

Two-direction Air vane Evenly Distributes Air

1 Year Part - 5 Year Compressor Warranty

36000 BTU Indoor Unit specs

Model Number	T7HH20S-H236-E
Capacity	36000 BTU
Air Flow (Hi/M/Lo)	865 / 600 / 423 cfm
Power Supply	230 V / 60 Hz / 1Ph
Noise Output (Hi/M/Lo)	57 / 46.5 / 29.5 dBA
Liquid / Gas	3/8" x 5/8"
Weight	43.21 lbs
Dimensions (W x D x H)	46.85" x 11" x 14.6" inches

Outdoor Unit (condenser) specs

Model Number	T7HH20S-H236-C
Compressor	Toshiba (GMCC)
Rated Cooling Capacity	33000 BTU
Cooling Capacity Range	15000~37000 BTU
Rated Heating Capacity	36000 BTU
Heating Capacity Range	19900 - 38200 BTU
Air Flow	4300 m3/h
Power Supply	208-230 V / 60 Hz, 1Ph
Input Power	1250-3970 W
SEER	20
EER	11.7
HSPF	10.5
Maximum Fuse	35A
Sound Level	64 dB
Refrigerant	R454B / 25ft (Pre-Charged)
Maximum Pipe Length	164 ft
Maximum Elevation	82 ft
Operating Temperature	-22 - 122 F
Weight	157 Lbs
Dimensions (W x D x H)	37.24 x 16.14 x 31.9 inches

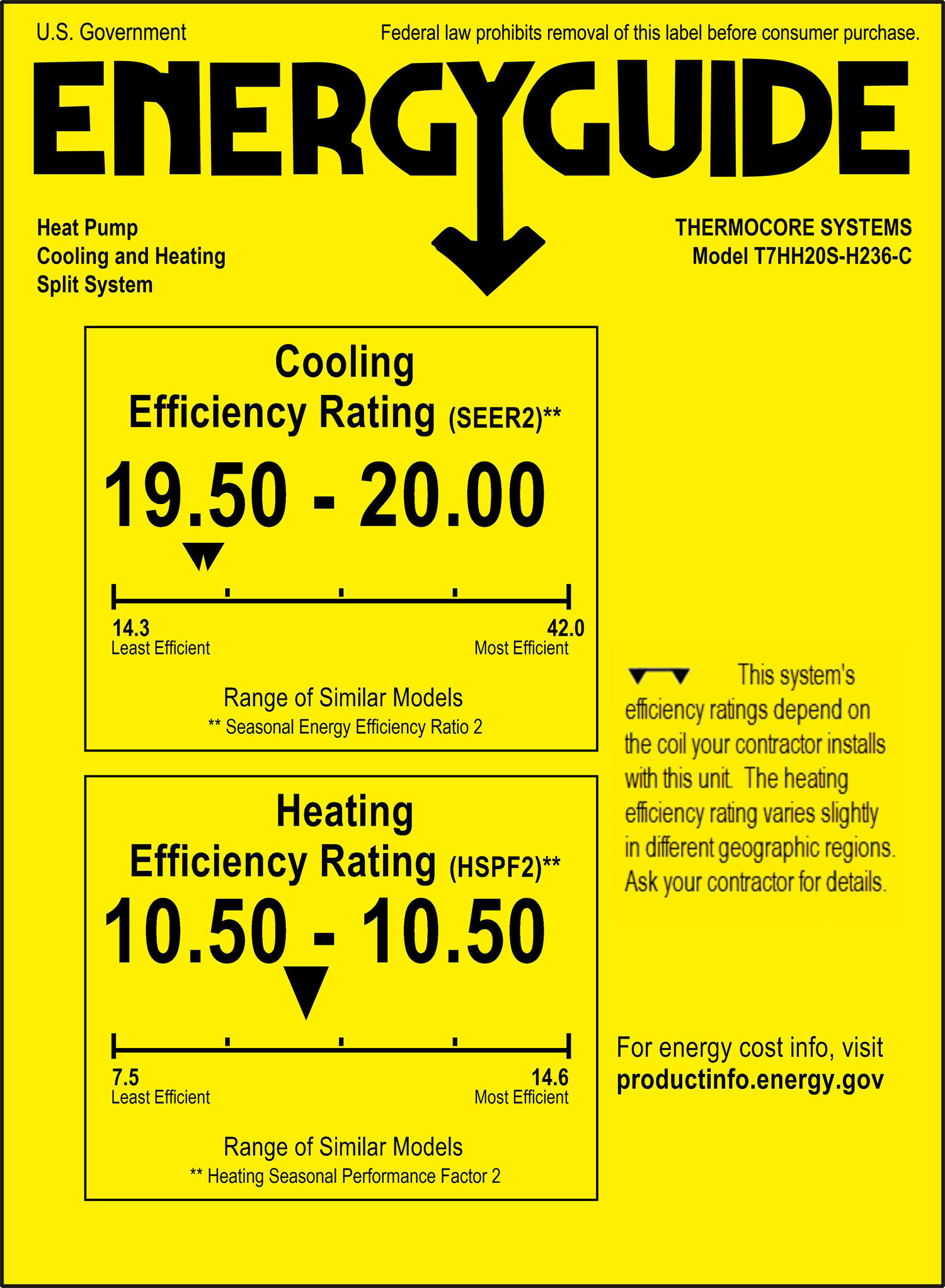

VIEW AHRI ENERGY GUIDE LABEL >>>

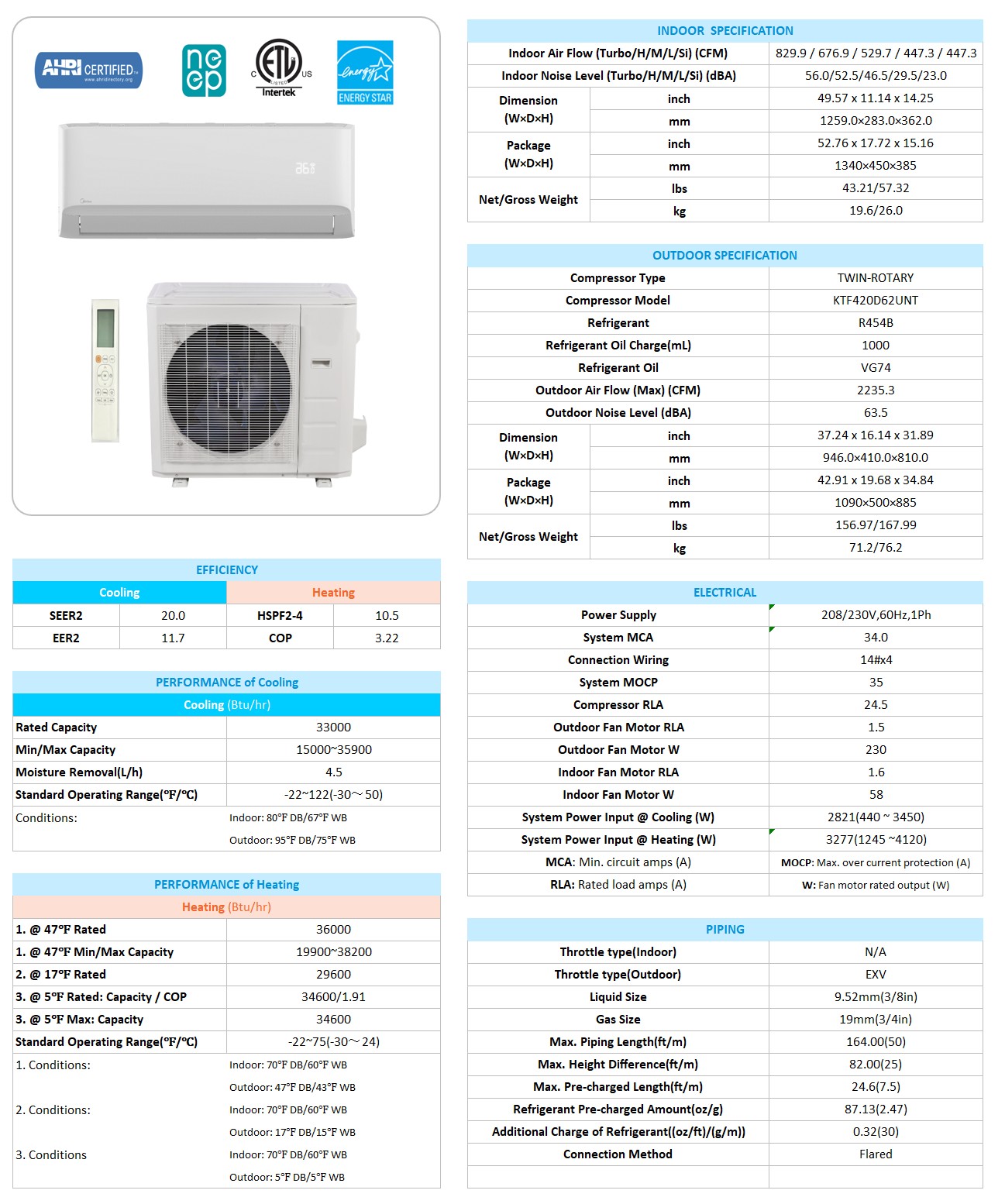

VIEW FULL CONDENSER SPECIFICATION SHEET >>>

WHAT IS DC INVERTER?

DC Inverter Air Conditioners are the ultimate cooling technology of the HVAC field. They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. The current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result in different running speeds of the compressor. Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current. DC Inverter AC's bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power. Therefore, unlike conventional split Air Conditioners Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.

Conventional compressors turn on and off to maintain the room temperature at desired level. This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off. Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling to maintain the desired temperature. The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly, Once the set temperature is reached, it slows down and adjust its capacity just to counter the heat loss or heat gain of the building. Constant temperature is maintained.

DC Inverter Energy Efficient Heating & Cooling Mini Splits

DC Inverter Energy Efficient Heating & Cooling Mini Splits

Inverter Mini Split Air Conditioner Saves Money

Inverter Mini Split Air Conditioners Are Energy Efficient & Save Money

Install Kit Contents:

15 Ft Flared Copper Tubing

15 Ft Pipe Insulation

15 Ft Electrical Wire - INDOOR>OUTDOOR (16/4)

Drain Pipe (indoor)

Wall Bracket for Indoor Unit

Plastic Pipe Wrap

Installation and User Manual

8 Ft Electrical Wire - OUTDOOR>BOX (10/3)

BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables. The condensing unit comes pre-charged with refrigerant however, procedures such as conducting leak tests etc. are still important in ensuring proper functioning system. *Although installation may seem easy to some, certain tools and experience is necessary to complete setup of a mini split* Click for Installation Tip. It is highly advised a certified HVAC technician complete installation to be eligible for warranty. See warranty details below >

SHIPS TO TO BOTH UNITED STATES AND CANADIAN LOCATIONS!

Our Thermocore systems ship via RL Carriers or similar LTL freight service out of Oak Park, Michigan and are palletized onto a single skid. Transit time is usually between 4 to 6 business days from payment receipt depending on where you are geographically located. Please provide a contact phone# upon checkout (to be used for delivery purposes only). SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order. Failure to provide valid contact# will delay order. System comes with Free shipping - this includes delivery to any location within the Continental United States. We will ship to Canadian locations but we need to quote separately - please contact our offices. Additional freight for Canadian registries is usually around $150. (import and duties may apply).

*5 Year Compressor - 1 Year on all other Parts* Registration card will be sent with unit, this card should be completed by an HVAC technician (installer). Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship. Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge. The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed. Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 1 year from date of purchase or 5 years for the compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost. Damaged / Defective product will be picked up and a brand new exchange will be shipped out. Download Warranty Spreadsheet
