| System Includes: |
|
| 24,000 BTU INVERTER Cooling Capacity
23,000 BTU INVERTER Heat Pump
16 SEER - R410A PreCharge - INVERTER DC
Install Kit (connection piping, drain, remote etc)
1 Year Part - 5 Year Compressor Warranty >>> |
|
|
|
|
| |
|
|
|
|
|
 |
| Top Line Features: |
| 16 SEER - 8.2 HSPP
Pre-Charged w/ Eco-friendly R410A Refrigerant
Heating Capacity as High as 25000 BTU's
Fresco Tech™ system for Ultra Hygenic Air
MODES: Clock, Sleep, Digital 24 hour timer
Low Ambient Temperature Operation (5° F)
Two-direction Air vane Evenly Distributes Air
Restart IC: Settings restored Following Outage 1 Year Part - 5 Year Compressor Warranty >>> |
|
|
|
 |
|
| Inverter Technology: |
|
 |
|
|
|
| Model Number |
SENL-24HD |
| Style |
Ductless Mini Split AC With Heat Pump |
| Compressor |
TOSHIBA |
| Refrigerant |
R410A (Pre-Charged)/2540g |
| Cooling Capacity |
24000 BTU |
| Heating Capacity |
23000 BTU |
| Air Flow |
1150/1100/930 m3/h |
| Power Supply |
230 V / 60 Hz, 1Ph |
| Input Power |
2370W (cooling) / 2500W (heating) |
| Input Current |
10.7A (cooling) / 11.2A (heating) |
| SEER |
16 |
| EER |
2.84 |
| HSPF |
- |
| Sound Level |
50.7/45.3/42.8(indoor) / 60dB (outdoor) |
Moisture Removal
|
2.5 L/hr |
| Min Operating Temperature |
- 15 C / 5 F |
| Control System |

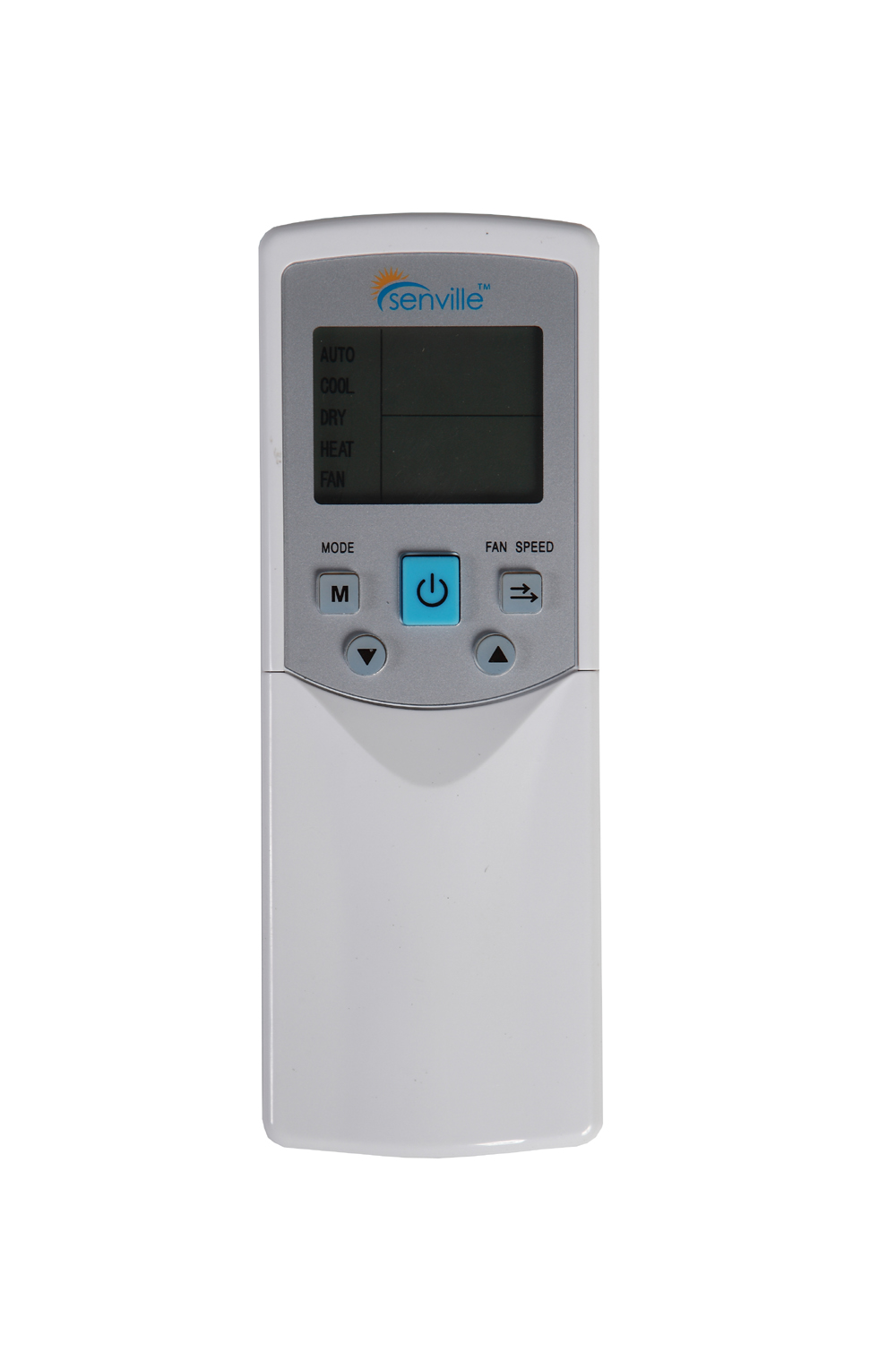

Digital Multifunction infrared Remote control w/ indoor unit Dynamic digital LED display |
| Net Weight |
30 Lbs (Indoor) / 110 Lbs (Outdoor) |
| Dimensions |
39.3×9.5×12.5 in (Indoor Unit) – 33×12.5×27.5 in (Outdoor Unit) |
| Warranty |
1 Year on Parts / 5 Years on Compressor |
|
|
|
|
|
|
| Install Kit Contents: |
- 13 Feet Flared Copper Tubing
- 13 Feet Pipe Insulation
- Drain Pipe (outdoor)
- Wall Cross piping
- Binding Belt - Catchment Trough
- Remote Control Wall Bracket
- Wall Hole Block Putty & Insulated Tape
|
|
|
 |
 |
|
|
|
|
|
| BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables. The condensing unit comes pre-charged with freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling. *Although the installation may seem easy to some, certain tools and experience is necessary to complete setup of a mini split* See Installation Tip. A certified HVAC technician must conduct / complete the installation to be eligible for the warranty. See warranty details below > |
|
 |
|
|
 |
|
|
|
|
|
*5 Year Compressor - 1 Year on all other Parts* Registration card will be sent with unit, this card should be completed by an HVAC technician (installer). Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship. Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge. The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed. Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 1 year from date of purchase or 5 years for the compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost. Damaged / Defective product will be picked up and a brand new exchange will be shipped out. 1 YEAR PARTS WARRANTY CAN BE EXTENDED TO 2 YEARS FOR AN ADDITIONAL $72.00
|
|
|
|
|
 |
|
SHIPS TO TO BOTH UNITED STATES AND CANADIAN LOCATIONS! |
|
 |
|
|
Our Mini Split systems ship via YRC FREIGHT or similar on-truck freight service and are palletized onto a single parcel. Transit time is usually between 4 to 7 business days from payment receipt depending on where you are geographically located. Please provide a contact phone# upon checkout (to be used for delivery purposes only). SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order. Failure to provide valid contact# will delay order.
For U.S. orders, unit will ship out of Gardena, CA. Canadian Orders will ship out of Saint-Leonard, Quebec. |
|
|
 |
|
|
|
|
