The UCHW-H12AF2 Ductless mini split air conditioner - Heater has two units: the compressor which sits outside of the home, and the air handler which is placed inside. Like any AC you need to know how many BTUs are needed for the area you are trying to condition. A mini split AC is very quiet and efficient, but it is more expensive than a window or portable unit. Since they are ductless, the mini split AC/Heaters avoid the energy losses associated with the ductwork of central forced air systems.

Home > Mini Split Air Conditioners >

12000 BTU AC - Heat Pump

Air Conditioners - Split AC's, Portable AC's, Air Cooler Source
855-382-8110
Mini Split Air Conditioners
Search BY BTU Capacity:


Inverter Systems
Single-Zone
Dual-Zone
Tri-Zone
Quad-Zone
Quint-Zone (5)
Energy Star
Temperature Control: Portable A/C's, Window A/C's, Air Coolers, Ductless Splits,
Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >
Air Purification: IONIZERS, HEPA Filters, UV-TION
Ionizers >
HEPA >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers
Humidifiers >
Dehumidifiers >

Accessories

12000 BTU Mini Split - Heat Pump

Price: $ Free Shipping via AIT worldwide
dotted line
12000 BTU Mini Split AC : 12,000 BTU Amcor Mini Ductless Split AC and Heat Pump : UCHW-H12AF2

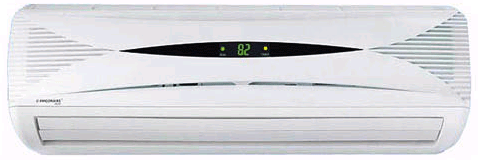

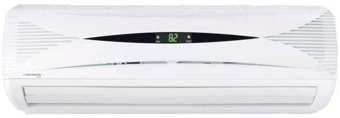

Air Handler (Indoor Unit) : Click for Larger Image
12000 BTU Mini Split 12,000 BTU Amcor Mini Ductless Split AC and Heat Pump : UCHW-H12AF2 AC

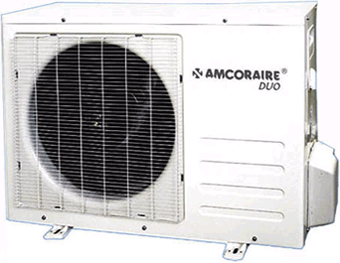

Compressor (Outdoor Unit): Click for Larger Image
dotted line
Cooling Capacity:
Heat Pump Capacity:
Max Room Size:
Thermostat Range:
Air Handler Dimension:
Air Handler Weight:
Compressor Dimension:
Compressor Weight:
12,000 BTU's
12,000 BTU's
500 Square Feet
61° F - 88° F.
36.18" W x 8" D x 10.5" H
31 Pounds
39.17" W x 16.34" D x 27" H
110 Pounds
12000 BTU Mini Ductless Split Air Conditioner - Heater 12,000 BTU Amcor Mini Ductless Split AC and Heat Pump : UCHW-H12AF2  description
Great for 300 - 500 square foot rooms,

the 12000 BTU Amcor Duo UCHW H12AF2 Mini Split Air Conditioner and Heat Pump is a sensible, duct-free alternative to expensive central air conditioning.

Unlike bulky portable or wall units, only a small hole is needed to link the outdoor compressor to the stream-lined air-handler mounted inside.  The noisiest and largest parts are isolated outside resulting in saved space as well as less indoor sound pollution.  Split AC's deliver more cooling efficiency per BTU than any other add-on-unit and match the effectiveness of central air conditioning systems without the expense of retrofitting ductwork.

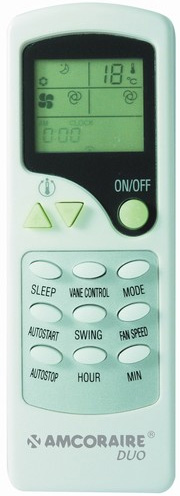

Digital Remote Included: Click for Larger Image
24000 BTU Amcor Mini Ductless Split features
  • 12,000 BTU Cooling Power with 12,000 BTU Heat Pump
  • 5 YEAR’S FULL WARRANTY ON COMPRESSOR
  • 3 YEAR FULL WARRANTY ON PARTS - 1 YEAR ON LABOR
  • Single Zone Setup (1 Air Handler)
  • Whisper Quiet Indoor Operation
  • 24 Hour ON/OFF Timer - Sleep Mode
  • Functions: Cools, Heats, Circulates and Dehumidifies Air
  • Adjustable & Programmable via Included Infrared Remote
  • Filters: Washable Screen Filter, Cold Catalyst Filter
  • Technician Comes to House if Issue Arrises within 1'st Year
  • Ductless Split AC/Heater 12,000 BTU Technical Specs
    Airflow: > 24,020 cf/hr
    Timer Settings: 1 - 24 Hours
    Moisture Removal: 29 Liters / Day
    Operating Range: 19° - 109°F
    Inside Noise Output: 36 – 45 dB(A)
    Outside Noise Output: 60 dB(A)
    Zones (Air Handlers): Single (1)
    Fan Speed Settings: (3) + Automatic
    Compressor Type: Toshiba
    Refrigerant: prec R410a
    Refrigerant Charge: 42.4 oz.
    Mini Ductless Split Air Conditioner electrical
    Power Supply: 115 VAC / 60Hz
    Inverter: No
    SEER: 13
    Rated Current: 9.6 Amps
    Approvals: UL / 13SEER CSA
    CSA   Toshiba Compressor   UL Listed
    Mini Ductless Split AC - Heater Install Kit Contents
    - 25 Feet Flared Copper Tubing
    - 25 Feet Pipe Insulation
    - 4 Rubber Pads (outdoor)
    - Drain pipe (outdoor)
    - Wall Cross pipe
    - Tie Band
    - Remote w/ sleep timer
    - Remote Wall Bracket
    Install Kit Contents
    Install Kit Specs
    Connection Method: Flare
    Max Pipe Length: 50 ft.
    Pipe Size: 1/4" - 1/2"
    Service Port Connection: 5/16 in.
    Maximum Elevation: 25 ft.
    PDF Download Download the Product Manual >
    PDF Download Download the Installation Diagram >
    Mini Ductless Splits
    * Warranty Details: Unit must be installed by a licensed HVAC (Heating, ventilating, and air conditioning) company to be eligible for in-house Warranty. If you receive a damaged or defective product AmcorAire will replace it with another brand new unit Free of cost. Damaged/Defective product will be picked up and a brand new exchange will be shipped once notified. Once a non defective unit is installed by a HVAC company, chances of anything going wrong with such unit is very slim. But worst case scenerio, if you still come across any issues, consumer can call the company that installed the unit (usually they will cover this FREE as it falls under installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced , AMCOR will send the part free of charge. After installation warranty ends, Amcor will also pay for the labor to replace the part for up to a year from the date of purchase. Amcor will use a flat rate chart for labor fee payment by checking the rates for these types of repairs. If the compressor is defective, Amcor will send a BRAND NEW replacement. If the indoor unit is defective Amcor will send a BRAND NEW indoor unit free of cost.

    * Heat Pump Disclaimer:   AmcorAire Ductless Mini-Split units are Heat Pumps and will operate in ambient conditions down to about 17° F (other conditions i.e. humidity and wind may increase or decrease working temperature and efficiency). Climates that routinely drop below 17° F Amcor recommends a back up source of heat.
