Thermocore T316S-H236: New for 2017, Enjoy full season comfort with this 18 SEER / 3 TON Inverter Mini Split with 36000 BTU Heat Pump. With a 18 SEER coupled with DC Inverter technology this system provides the benefits of low operation temperatures, rapid cooling / heating as well as WIFI operation controls. Comes fully charged with eco-friendly R410A and includes complete 5 Year Compressor - 1 Year Part Warranty. 15FT Lineset / Wire Included..

Home > Mini Splits > 36000 BTU >

3 Ton AC - Heat Pump

Air Conditioners - Split AC's, Portable AC's, Air Cooler Source
855-382-8110
Mini Split Air Conditioners
Search BY BTU Capacity:


Inverter Systems
Single-Zone
Dual-Zone
Tri-Zone
Quad-Zone
Quint-Zone (5)
Energy Star
Temperature Control: Portable A/C's, Window A/C's, Air Coolers, Ductless Splits,
Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >
Air Purification: IONIZERS, HEPA Filters, UV-TION
Ionizers >
HEPA >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers
Humidifiers >
Dehumidifiers >

Accessories
36000 BTU inverter Split
system back to the top

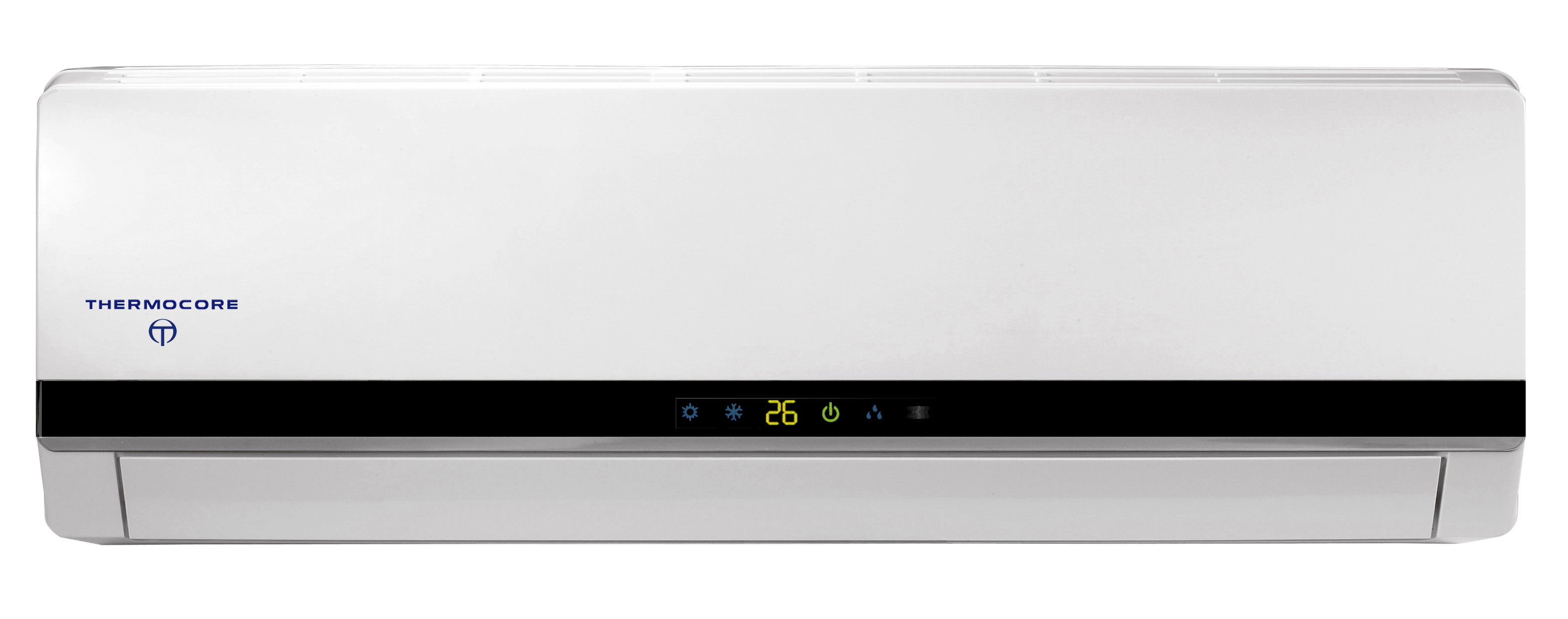

Indoor Unit Indoor Unit Outdoor Unit Installation Kit

Technical Data:
  • 36,000 BTU INVERTER Cooling Capacity
  • 36,000 BTU INVERTER Heat Pump
  • 18 SEER - 8.5 HSPF / INVERTER DC
  • Pre-Charged with ECO-Friendly R410A
  • 1 Yr Parts - 5 Yr Compressor Warranty   View Details >

3 TON Inverter AC - Heat Pump

Price: $2181.45   Free Shipping
  • Select your choice of length for BTU:
  • Select to add wire

    Features back to the top

    Mini Split
    Top Line Features:

  • Maximum Efficiency: 18 SEER DC Inverter Technology
  • Low ambient Cooling and Heating down to 5F
  • Ideal for Grow / Server Rooms where max output required
  • Pre-Charged with Eco-friendly R-410a Refrigerant
  • REMOTE INCLUDES WIFI CONTROLS. SEE MANUAL
  • 36,000 BTU's of Turbo Cooling and Heating
  • Vertical Swing distributes air evenly throughout space
  • Sleep Mode - 24 hour ON/OFF Timer - Memories
  • Includes 15ft Install Kit
  • Auto & 3-Speed Fan Control with 24 Hour Timer

  • Mini Split Features

    Specifications back to the top
    Mini Split Features

    ARI Certified 12000 BTU Inverter Mini Split Ductless Air Condtioner w/ Heat Pump Toshiba Compressor R410A refrigerant Warranty

    Mini Split Installation KitTop
    Install Kit Contents:
    • 15 Feet Refrigeration Copper Tubing
    • 15 Feet Refrigeration Insulation
    • 15 Electrical Connection Harness
    • Air Handler Mounting Bracket
    • Drain Tube for Indoor Unit
    • Installation and User Manuals
    • LCD Digital Remote Control
    Includes Install Kit Install Kit



    Remote Controls back to the top
    inside
    WHAT IS DC INVERTER?

    DC Inverter Air Conditioners are the ultimate cooling and heating technology of the HVAC field.  They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. As known, the current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result different running speeds of the compressor. Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current.  DC Inverter air conditioners bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power.  Therefore, unlike conventional split Air Conditioners/Heat Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.

    Conventional compressors turn on and off to maintain the room temperature at desired level.  This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off.  Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling or heating to maintain the desired temperature.  The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly. Once the set temperature is reached, it slows down and adjust its capacity to counter the heat loss or heat gain of the building. By this way it will maintain a constant temperature.


    Inverter Split Benefits

    INVERTER GRAPH

    Installation Overview back to the top
    BASIC OVERVIEW:  The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall.  A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables.  The condensing unit comes pre-charged with Freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling for operation.  Click to Download Installation Manual. *Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a mini split*  See Installation Tip.  A certified HVAC technician must conduct / complete the installation to be eligible for the warranty.  (See warranty details below > )
    Installation Kit

    Installation Diagram

    following_install
    How unit will look setup
    How unit will look setup

    Remote Controls back to the top
    *5 Year Compressor - 1 Year on all other Parts*  Registration card will be sent with unit, this card should be completed by an HVAC technician (installer).  Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship.  Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge.   The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed.  Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty).  If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 1 year from date of purchase or 5 years for the compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost.  Damaged / Defective product will be picked up and brand new exchange will be shipped out.  Download Manual - Warranty Polices >

    Available Accessories back to the top
    US   SHIPS TO TO BOTH UNITED STATES AND CANADIAN LOCATIONS!   Canadian

    Our Thermocore systems ship via RL Carriers or similar LTL freight service out of Oak Park, Michigan and are palletized onto a single skid.  Transit time is usually between 4 to 6 business days from payment receipt depending on where you are geographically located.  Please provide a contact phone# upon checkout (to be used for delivery purposes only).  SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order.  Failure to provide valid contact# will delay order.  System comes with Free shipping - this includes delivery to any location within the Continental United States. We will ship to Canadian locations but we need to quote separately - please contact our offices.  Additional freight for Canadian registries is usually around $150. (import and duties may apply).
      RL Carriers

    Available Accessories back to the top

    25' Lineset kit (3/8 x 5/8)

    Lineset

    15' or 25' refrigeration linesets REQUIRED for installation.
    Price:  $138.00 > 226.00
    Click for more Info

    Condenser Bracket

    Lineset

    - Mount your condenser at any height on an outdoor sidewall
    Price:  $56.00
    Click for more Info

    Electrical Wire Harness

    Wire

    - 16/4 Electrical Wire Harness
    - For Extending Evap. Length

    Price:  $1.65 / ft
    Click for more Info

    Micro-Pump II

    Lineset

    - 3.2 Gallons per Hour Rate
    - 120 or 220 VAC options

    Price:  $152.00
    Click for more Info

    Dotted Line
    mini split
    pdf files

    User Manual

    Installation

    Warranty

    Warranty

    Specs




    View the Mini Split FAQ > View the Mini Split Outline Diagram > Click to contact us >
