The Amcoraire AMS241HX - 2 Ton mini wall split AC with 28,000 BTU Heat Pump has two units: the compressor which sits outside of the home, and the air handler which is placed inside. A mini split air conditioner is both quiet, durable and features the highest efficiency ratings of any add-on-system. Since they are ductless, mini split AC's avoid the energy losses associated with the ductwork of central forced air systems.

Home > Mini Split Air Conditioners >
AMS241HX

855-382-8110

Home - About - SiteMap - Contact

Search BY BTU Capacity:

Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >

Ionizers >
HEPA >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers

Humidifiers >
Dehumidifiers >

24000 BTU Inverter Split - Heat Pump
Price:	$

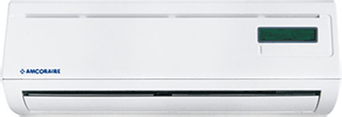

Air Handler (Indoor Unit) : Click for Larger Image



Compressor (Outdoor Unit) Click for Larger Image		Remote Control Click for Larger Image

Cooling Capacity:
Heat Pump Capacity:
Ideal Room Size:
Thermostat Range:
Indoor Dimensions:
Air Handler Weight:
Outdoor Dimensions:
Compressor Weight:

24,000 BTU's
28,000 BTU's
800-1200 Square Feet
61° F - 88° F.
52" W x 15 1/2" D x 12" H
44 Pounds
40 1/8" W x 34" D x 17 1/8" H
121 Pounds

With an amazing 16 SEER rating and advanced Inverter Technology, the AMS241HX - 24,000 BTU Ductless Split with 28,000 BTU Heat Pump incorporates the most energy efficient cooling - heating system of any Ductless Split in its class.

Accommodating areas over 1000 square feet, this unit is the most powerful Mini Split on the Market and is a sensible, duct-free alternative to expensive central air conditioning. Unlike bulky wall units, only a small hole is needed to link the outdoor compressor to the stream-lined air handler mounted inside. The noisiest and largest parts (compressor and condenser fan) are isolated outside resulting in saved space as well as less indoor sound pollution. Split A/C’s deliver more Cooling efficiency per BTU than any other add-on-unit and match the effectiveness of central air conditioning without the expense of retrofitting ductwork.

24,000 BTU Cooling & 28,000 BTU's of Heating Power.

5 YEAR’S FULL WARRANTY ON COMPRESSOR.

3 YEAR WARRANTY ON PARTS - 1 YEAR ON LABOR.

Includes Wired Remote Receiver - Wall Mount.

Patented Inverter Technology Minimizes Energy Costs.

Cools, Heats, Circulates Air and Dehumidifies.

Restart IC: Restarts to Settings Following Power Outage.

Washable Screen and Cold Catalyst Filter for Hygienic Air.

Whisper Quiet Indoor Operation.

Adjustable & Programmable via Included Remote Control.

Low Ambient Operation - Startup Temperatures.

Installation Kit, and all Operational Accessories Included.

- 25 Feet Flared Insulated Copper Tubing
- 25 Feet Pipe Insulation
- 4 Rubber Pads (outdoor)
- Drain Pipe (outdoor)
- Wall Cross piping
- Remote Control w/ Wall Bracket
- Wire Harness Between Indoor & Outdoor
- Wire Harness Outside Unit to Circuit Breaker
- Defrost Wire

Connection Method:	Flare
Max Pipe Length:	100 ft.
Pipe Size:	3/8" - 5/8"
Service Port Connection:	5/16 in.
Max Elevation - Distance:	50 ft.

Power Supply (VAC):	230/208 - 60Hz
HSPF:	9.8
SEER: (Energy Efficiency)	16.0
Power Use (Cool): Rated/Max	2.504 / 2.765 KW
Power Use (Heat): Rated/Max	2.314 / 2.768 KW
Current (Cool): Rated/Max	11.09 / 12.22 Amps
Current (Heat): Rated/Max	10.24 / 12.23 Amps
Max Overload Protection:	30 Amps
EER Cooling / COP Heating	10.9 / 5.6

Airflow (L-M-H):	518-588-677 (cfm)
Moisture Removal:	4.4 Pints / Hour
Operating Range: (Cool)	5° - 131°F
Operating Range: (Heat)	-4° - 109°F
Thermostat:	61° F - 88° F
Inside Noise Output:	44 – 50 dB(A)
Outside Noise Output:	57 dB(A)
Outside Fan Speed:	400—900 RPM
Zones (Air Handlers):	Single (1)
Fan Speeds (RPM):	1080-1180-1280
Refrigerant:	R-410A

Click to Download Product Manual >

* Warranty Details: Unit must be installed by a licensed HVAC (Heating, ventilating, and air conditioning) company to be eligible for in-house Warranty. If you receive a damaged or defective product AmcorAire will replace it with another brand new unit Free of cost. Damaged/Defective product will be picked up and a brand new exchange will be shipped once notified. Once a non defective unit is installed by a HVAC company, chances of anything going wrong with such unit is very slim. But worst case scenario, if you still come across any issues, consumer can call the company that installed the unit (usually they will cover this FREE as it falls under installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced , AMCOR will send the part free of charge. After installation warranty ends, Amcor will also pay for the labor to replace the part for up to a year from the date of purchase. Amcor will use a flat rate chart for labor fee payment by checking the rates for these types of repairs. If the compressor is defective, Amcor will send a BRAND NEW replacement. If the indoor unit is defective Amcor will send a BRAND NEW indoor unit free of cost.
