System Includes:

30000 BTU's Cooling / Heating

Outdoor Compressor / Indoor Air Handler

Digital Multi-function LCD Remote Control

Installation Kits (connection wire, piping etc.)

Product & Installation Manuals

2.5 TON Mini Split AC - Heat Pump

Price:	$1912.45

Top Line Features:

2.5 Tons of Cooling and Heating Capacity

Intelligent Mechanical Defrosting

Washable Filters - Biologically Actv Enzyme

Multi-Folds Evaporator - Rapid Cooling - Heating

Pre-Charged with R410A Freon for up to 25' of piping

Anti-Cold Blowing During Heating Season

Sleep Mode - 24 hour ON/OFF Timer - Memories

Enhanced Copper Coil - Wide Angle Air Spread

Over Current and Thermal Protection

Flexible, Quick Installation - Easy Operation

DIGITAL LED DISPLAY:
With its integrated INTELLIGENT CONTROL system you can choose from a variety of functions and settings. The digital LED information display center of the indoor unit provides real-time information relative to the operation of the unit, and the environment.

LCD Remote Control:
Settings, modes and thermostat controls conveniently controlled with Included LCD Digital Remote Control.

High Efficiency and Environmentally Friendly:
The R410A refrigerant enables high efficiency of the unit while preserving the ozone layer. This is another testament to our dedication to environmentally friendly products.

Multi-Folds Evaporator:
Enlarges the heat dissipation surface area; enhancing the efficiency and making the unit more compact in size.

Three Dimensional Swinging Pattern Air Delivery Technology:
Multidimensional wind-outlet and the dual swinging louvers will uniformly spread the cool air to reach every corner of room.

Good Sleep Mode Operation:
With the touch of a button, your ductless split air conditioner is set to automatically adjust the room temperature during your sleep.

Superior Inner-Grooved Copper Tubing:
Enables a much faster refrigerant flow, increasing the heat exchange efficiency by 30-50% over the traditional smooth copper tubing.

Integrated Dual Particle Filter (Washable):
Anti-mold dust/particle filters under the front panel cover provide for fresher air circulation. They are removable and washable.

Saw Tooth Fan Wheel Design for Noise Reduction:
The latest design adopts the air flow blades in the shape of saw teeth, which greatly reduces the vibration noises at the end of the vortex, ensuring a quiet operation of the unit.

System Specifications:

Cooling Capacity:	30,000 BTU
Heat Pump CapacitY:	31,000 BTU
HSPF:	9.2
SEER: (Energy Efficiency)	13.0
Timer Settings:	1-24 Hours
Airflow:	765 cfm
Moisture Removal: (Pints / Hour)	8.4
Thermostat:	61° F – 88° F
Inside Noise Output:	< 44 dB(A)
Outside Noise Output:	54 dB(A)
Indoor Fan Speeds (3 + Auto):	HI - MED - LOW
Zones: (Air Handlers)	SINGLE
Compressor Brand:	Sanyo - Toshiba
Compressor Type:	Rotary
Refrigerant:	R410A
Indoor (air handler) Dimensions:	49" W x 9" D x 13" H
Indoor (air handler) Weights:	42 lbs.
Outdoor (condenser) Dimensions:	35" W x 17" D x 31" H
Outdoor (condenser) Weight:	146 lbs.

Electrical Info:

Power Supply (VAC):	230 / 208 - 60Hz
Total Current:	15.8 Amps
MCA:	19.4 Amps
MOP: breaker size	30 Amps
Compressor RLA:	14.5 Amps
Compressor LRA:	70 Amps

Piping - Install Kit Info:

Tubing / Piping Included:	25 Feet
Ref. Pipe Size (liquid - gas):	3/8" - 5/8"
Drain Pipe Size (ID - OD):	1/2" - 3/4"
Max Pipe Length:	80 feet
Max Lift / Drop:	25 feet
Load Capacity: (20'/40'/40' HQ)	54 /108 / 114

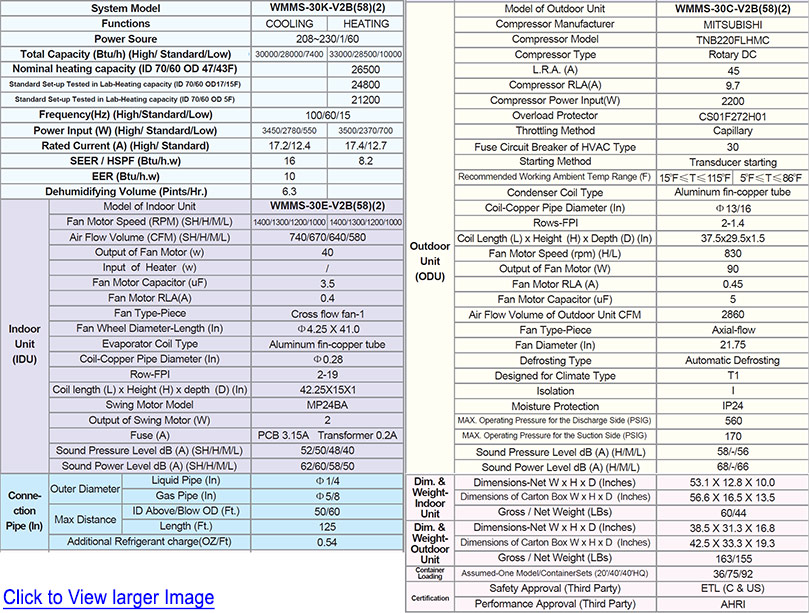

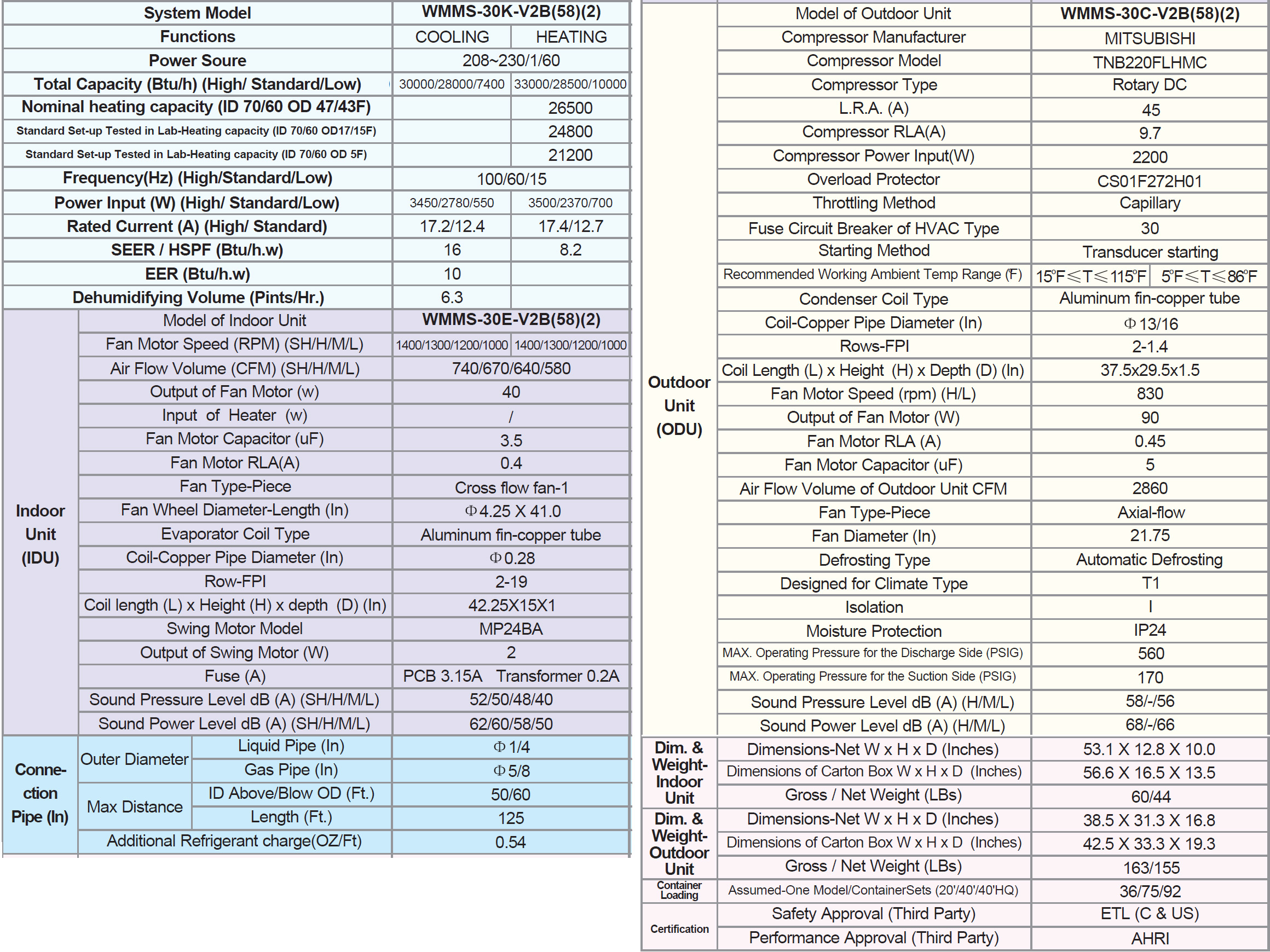

Click to View Full Spec Sheet >

Install Kit Contents:

25 Feet Flared Insulated Copper Tubing

25 Feet Pipe Insulation

Drain Pipe (outdoor)

Wall Cross piping

Defrost Wire

Putty to seal piping / holes

Remote Control w/ Wall Bracket & Batteries

Wire Harness Between Indoor & Outdoor

Wire Harness Outside Unit to Circuit Breaker

BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables. The condensing unit comes pre-charged with Freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling for operation. Click to Download Installation Manual. *Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a mini split* See Installation Tip. A certified HVAC technician must conduct / complete the installation to be eligible for the warranty. (See warranty details below > )

*5 Year Compressor - 1 Year on all other Parts* Registration card will be sent with unit, this card should be completed by an HVAC technician (installer). Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship. Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge. The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed. Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 1 year from date of purchase or 5 years for the compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost. Damaged / Defective product will be picked up and brand new exchange will be shipped out. Download Manual - Warranty Polices >

These mini split systems usually ship via SAIA Motor Freight Lines (on truck) or some other freight service. These units ship out of O'Fallon, Missouri and are in transit within 2 business days from payment receipt. All system components are palletized together. Depending on where you are geographically located, transit time is usually between 3 and 6 business days. Please provide a contact phone# upon checkout where recipient of order can be reached. SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR delivery. Only ships to the lower 48 Contiguous United States.
