Thermocore T323S-H109 Ductless Mini Split - 9000 BTU Inverter Cooling Capacity along with a 9,000 BTU Heat Pump, this 3/4 TON Energy Star Ductless Split can cool or heat an area up to 400 ft².  Advanced INVERTER DC Technology provides both energy efficient operation and low ambient operation start-ups. Additional features include auto-diagnostic functions and sleep mode / 24 hour timer.   Comes pre-charged with eco-friendly R410A
Home > Mini Splits > 3/4 Tons >

T323S-H109

Air Conditioners - Split AC's, Portable AC's, Air Cooler Source
855-382-8110
Mini Split Air Conditioners
Search BY BTU Capacity:


Inverter Systems
Single-Zone
Dual-Zone
Tri-Zone
Quad-Zone
Quint-Zone (5)
Energy Star
Temperature Control: Portable A/C's, Window A/C's, Air Coolers, Ductless Splits,
Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >
Air Purification: IONIZERS, HEPA Filters, UV-TION
Ionizers >
HEPA >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers
Humidifiers >
Dehumidifiers >

Accessories
9000 BTU inverter Split
System
Indoor Unit Indoor Unit Outdoor Unit Installation Kit
 System Includes:
  • Indoor Unit - Air Handler
  • Outdoor Unit - Compressor
  • Digital Multi-function LCD Remote Control)
  • 15ft lineset/15ft wire included.
  • Extend using drop down menu
  • 1 Yr Part, 5 yr Compressor Warranty >
  • 9000 BTU AC - Heat: 25 SEER / 120VAC

    Price: $924.45 Free Shipping
  • Select your choice of length for BTU:
  • Select to add wire
    Features back to the top
    Inverter Split
    Top Line Features:
  • 25 SEER - 11.2 HSPF - ENERGY STAR  Energy Star
  • Pre-Charged w/ Eco-friendly R410A Refrigerant
  • Operates on Standard 120 VAC Power Input
  • Cross Flow Technology reduces noise output
  • Compatible with over 7 filtration medias
  • Freon Leak Detection > Notification system
  • Low Ambient Temperature Operation (-12° F)
  • Two-direction Air vane Evenly Distributes Air
  • Restart IC: Settings restored Following Outage
  • Follow-Me Function tracks Remote Location
  •
    Energy Star benefits

    feature

    The particle filter or “pre-filter” removes dust and other air-borne pathogens before pushing the air through additional filtration medias and the refrigeration coil array.  This filter is washable and comes factory installed with every ductless air conditioner system.


    The open channel construction of the 3M High Air Flow (HAF) filter offers low initial airflow resistance, while its unique microstructure and electrostatic charge provides effective particle capture and retention. This translates into fewer filter change outs and reduced coil cleaning.  CLICK TO PURCHASE >>>

    The Vitamin C Filtration media releases Vitamin C into the air which softens skin and reduces stress among other therapeutic benefits.  A good choice for those wanting to add some invigoration to their indoor air environment.  Filter lasts over 2 years.  CLICK TO PURCHASE >>>

    The anti-microbial effect of silver ionic technology kills allergy causing bacteria by destroying the inner configuration elements of the cell body. The nano-silver attached to the filter screen constantly releases silver ions which directly eliminates and prohibits bacteria from replicating.  CLICK TO PURCHASE >>>

    Eliminates odors such as ammonia and deactivates harmful chemicals has such as formaldehyde.  By forming positive positions on the filter surface, Electrostatic Fiber traps small dust particles, smoke and pet dander to prevent allergic reactions and neutralize odor in the air.  CLICK TO PURCHASE >>>

    Specifications back to the top

    Model Number

    Thermocore T325S-H109

    Compressor

    TOSHIBA (GMCC)

    Refrigerant

    R410A (Pre-Charged)/40.6oz

    Cooling / Heating Capacity

    9000 BTU/ 8800 BTU

    Air Flow

    306/212/147 CFM

    Power Supply

    120 V / 60 Hz, 1Ph

    Input Power

    960W (cooling) / 1120W (heating)

    Rated Current

    8.4A (Cooling) / 9.8A (heating)

    Maximum Fuse

    15A

    Connection Wire

    16 AWG/4: Indoor>Outdoor | 12 AWG/3 Outdoor>Power Supply

    SEER

    25

    EER

    12.5

    HSPF4

    11.2

    Pre-charge Length

    25ft (R-410A)

    Maximum Pipe Length

    80ft

    Sound Level

    36/29/25(indoor) / 52dB (outdoor)

    Moisture Removal

    1.2 L/hr

    Min Operating Temperature

    -12 F

    Net Weight

    18 Lbs (Indoor) / 82 Lbs (Outdoor)

    Dimensions (WXDxH)

    31.5 x 7.5 x 11 in (Indoor Unit) – 31.5 x 13.15 x 21.75 in (Outdoor Unit)

    Warranty

    1 Year on Parts / 5 Years on Compressor

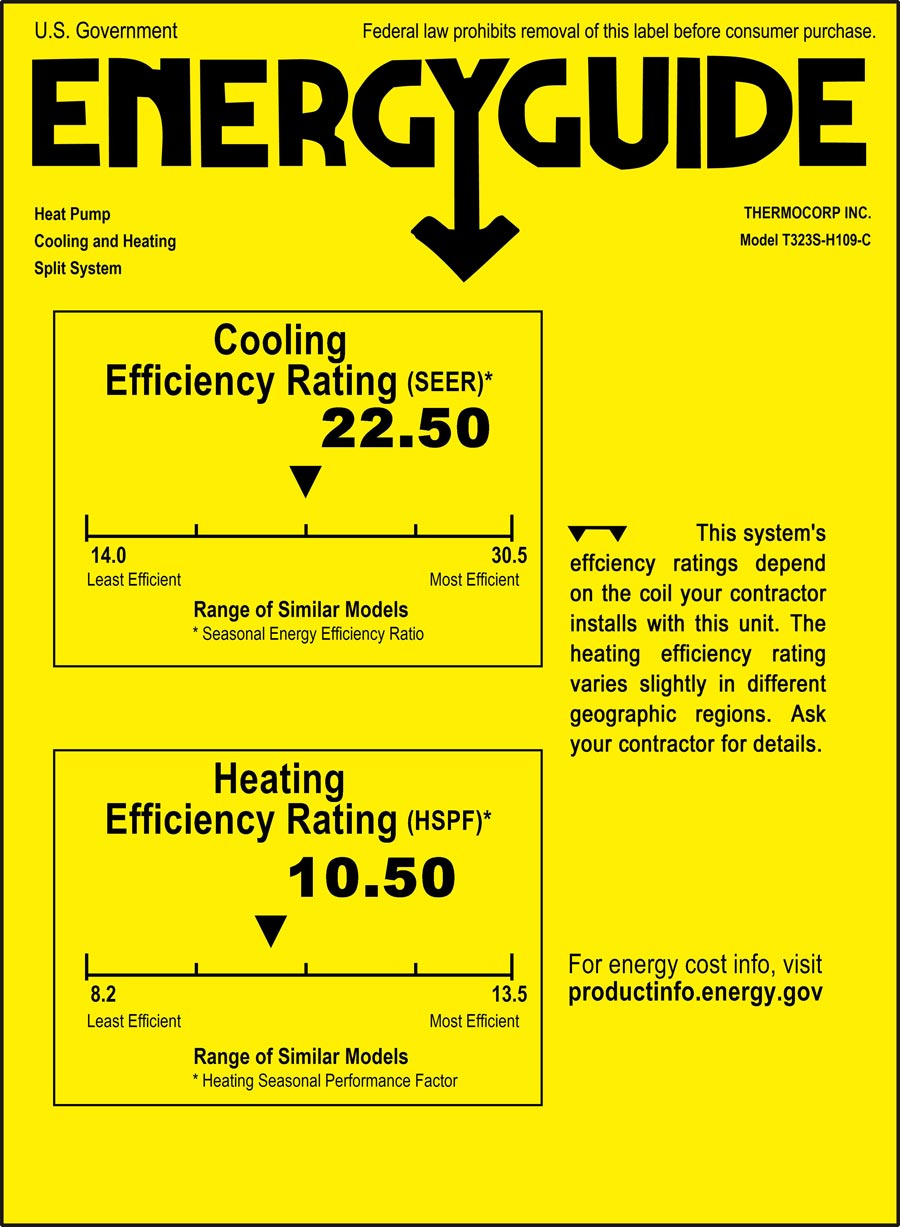

    CLICK TO VIEW energy label >>>
    Energy Star Toshiba Compressor 5 Year Air Conditioner Warranty Mini Split Pre-Charged w/ R-410A Refrigerant
    dc inverter
    inside
    WHAT IS DC INVERTER?

    DC Inverter Air Conditioners are the ultimate cooling and heating technology of the HVAC field.  They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. The current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result in different running speeds of the compressor. Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current.  DC Inverter AC's bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power.  Therefore, unlike conventional split Air Conditioners/Heat Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.

    Conventional compressors turn on and off to maintain the room temperature at desired level.  This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off.  Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling or heating to maintain the desired temperature.  The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly, Once the set temperature is reached, it slows down and adjust its capacity just to counter the heat loss or heat gain of the building. Constant temperature is maintained.

    Inverter Split
    Install Kit back to the top

    Install Kit back to the top
     Install Kit Contents:
    • 16 Feet Flared Copper Tubing
    • 16 Feet Pipe Insulation
    • 16 Feet Electrical Wire Harness
    • Drain Pipe (outdoor)
    • Wall Cross piping
    • Binding Belt - Catchment Trough
    • Remote Control Wall Bracket
    • Wall Hole Block Putty & Insulated Tape

    Includes Install Kit Install Kit
    *** Extend included 16 foot lineset to 25 feet. Just $71.00 ***  contact us for details >
    Available Accessories back to the top
    US   SHIPS TO TO BOTH UNITED STATES AND CANADIAN LOCATIONS!   Canadian
    Our Thermocore systems ship via RL Carriers or similar LTL freight service out of Warren, Michigan and are palletized onto a single skid.  Transit time is usually between 4 to 6 business days from payment receipt depending on where you are geographically located.  Please provide a contact phone# upon checkout (to be used for delivery purposes only).  SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order.  Failure to provide valid contact# will delay order.  System comes with Free shipping - this includes delivery to any location within the Continental United States. We will ship to Canadian locations but we need to quote separately - please contact our offices.  Additional freight for Canadian registries is usually around $150. (import and duties may apply).
      RL Carriers
    Installation Overview back to the top
    BASIC OVERVIEW:  The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall.  A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables.  The condensing unit comes pre-charged with R410A Freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling for operation.  *Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a mini split*  Click for Installation Tip.  It is highly advised a certified HVAC technician conduct / complete installation to be eligible for warranty.  (See warranty details below > )   Installation Kit
    Installation Diagram
    following_install
    Living Room Ductless Split Setup   How will look After Installation
    Remote Controls back to the top
    *5 Year Compressor - 1 Year on all other Parts*  Registration card will be sent with unit, this card should be completed by an HVAC technician (installer).  Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship.  Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge.   The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed.  Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty).  If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 1 year from date of purchase or 5 years for the compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost.  Damaged / Defective product will be picked up and a brand new exchange will be shipped out.
