Cooling Capacity:
Room Size:
Thermostat Range:
Dimensions:
Weight:
|
|
12,000 BTU
400 Square Feet.
64° F - 90° F.
30" H x 17" W x 17" D
78 lbs. |
|
|
|
| |
|
|
 |

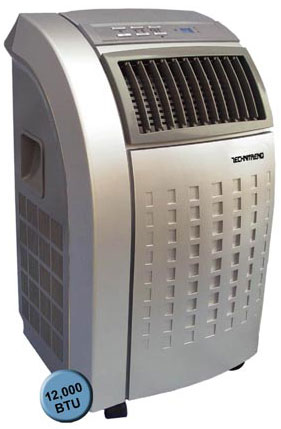

| Stay cool in the summer and breathe fresher air with this quality, efficient, portable air conditioner. Accommodating a space up to 400 sq. feet large, the stylish TN-12E features 12,000 BTU’s of powerful refrigerant cooling capabilities as well as secondary dehumidifier and air cleaning functions; all encased within a durable hard-alloy enclosure. Digital Display, Remote Control and all Installation Accessories Included. |
|
|
|
|
 |
1 Year Manufacturer Warranty On Parts.
6 Year Manufacturer Warranty On Compressor.
Evaporative Technology: Moisture Expells Through Exhaust!
Restart IC - Automatic Restart on Power Failure.
Choice Of Programmable Timer Or Continuous Operation.
Dual Activated Carbon Filter Helps In Removing Odors.
Uses LCDI (Leakage-Current Detection & Interruption) Plug.
Easy Grip Handle and Large Casters For Easy Mobility.
Cools, Dehumidifies, Improves Circulation & Filters Air. |
|
|
|
|
|
|
 |
| Power Supply: |
120 VAC |
| Freqency: |
60hz |
| Energy Efficiency
(EER): |
12.44 |
| Power Consumption: |
965 Watts |
| Amperage: |
8.5 Amps |
|
|
|
 |
| Exhaust pipe length: |
5 feet |
| Exhaust pipe diameter: |
5 inches |
| Window Kit Material: |
Foam |
| Window Kit Length: |
Max: 48 in. |
|
|
|
|
 |
| Timer: |
1~12 hours |
| Water Tank Capacity: |
3.2 Pints. |
| Air Volume: |
520 m3/h |
| Cooling Operating
Temp: |
64° F - 110° F |
| Compressor Type: |
Rotary |
| Refrigerant / load: |
R-22 |
| Moisture Removal: |
65 Pints / Day |
| Noise Level (dba): |
54 |
|
|
|
|
 |
- Built-In Water Tank Allows For Usage Anywhere.
- Extended Water Tube For Continuous Drainage.
- Washable Air Filter Collects Dust Particles.
- 2 Fan Speed Settings.
- Dehumidifies / Removes Moisture From Air.
- Fire Resistant PVC Plastic Housing.
- Restart IC - Auto Restarts After a Power Failure)
- Uses A UL Required LCDI Plug.
- Directional air discharge louvers
- Self-Evaporating Technology. (see below)
- Preset Timer Available. |
|
|
|
|
| |
|
|
Self-Evaporating Technology
During the cooling process, water is extracted from the air into the unit. Most of this water is recycled and used to cool the cooling coils. This creates improved cooling efficiently without adding energy cost. The moisture is then pushed out with the exhaust air, leaving you a virtually no-drain unit. In extreme humid conditions, if condensation collects faster than the unit can evaporate, the excess water will collect in the built-in tank. When the tank becomes full, compressor will automatically shut-off and unit will indicate that drainage is needed. |
|
| |
|
|
