The 18000 BTU INVERTER mini split AC with Suspended Ceiling Mounts can cool or heat an area up to 800 square feet.  The Indoor Air Handler offers the option of either being suspended from a ceiling or positioned on the floor. Inverter technology provides the benefits of low operation temps, rapid cooling / heating, as well as maximum energy efficiency. R410A Pre-charged - 15' Installation kits Included.

Home > Ceiling Ductless Splits >

1.5 Ton AC - HP: Suspended

Air Conditioners - Split AC's, Portable AC's, Air Cooler Source
Mini Split Air Conditioners
Search BY BTU Capacity:
Inverter Systems
Quint-Zone (5)
Energy Star
Temperature Control: Portable A/C's, Window A/C's, Air Coolers, Ductless Splits,
Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >
Air Purification: IONIZERS, HEPA Filters, UV-TION
Ionizers >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers
Humidifiers >
Dehumidifiers >
18000 BTU Dual Zone Mini Split
Indoor Units Indoor Unit Outdoor Unit Indoor Unit

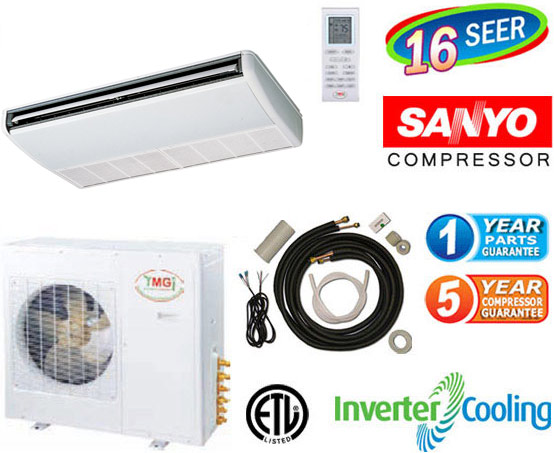

 System Includes:
  • 18000 BTU's Cooling & Heating Capacity
  • DC INVERTER Technology - 16 SEER
  • Suspended Ceiling Air Handler
  • Outdoor Unit - Compressor
  • Digital Multi-function LCD Remote Control
  • Installation Kits (connection wire, piping etc.

    1.5 TON Suspended Ceiling AC - Heat Pump

    Price: $2171.45   Free Shipping
    Features back to the top
    mini split features Top Line Features:
  • Dual Air Handlers Mount on Ceiling or Floor.
  • Ceiling output provides maxiumum air circulation
  • Washable Filters - Biologically Active Enzyme.
  • Low Startup Temps - MAXIMUM EFFICIENCY.
  • Pre-charged w/ R-410A Freon For 25' [x2] of Piping.
  • Sleep Mode - 24 hour ON/OFF Timer - Memories.
  • Enhanced Copper Coil - Wide Angle Air Spread.
  • Flexible, Quick Installation - Easy Operation.
  • Dual Zone Mini Split Features
    Specifications back to the top

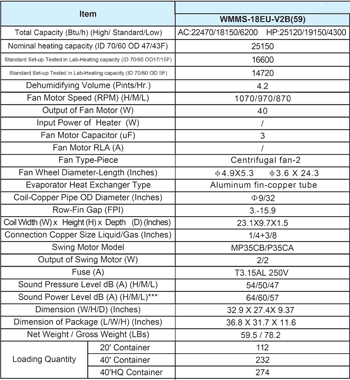

    18000 BTU Indoor Unit specs CLICK FOR FULL SPEC SHEET
    Model Number T1-OS218-ED
    Capacity 18000 BTU
    Air Flow (Hi/M/Lo) 620/520/410 (m3/h)
    Power Supply 230 V / 60 Hz / 1Ph
    Noise Output (Hi/M/Lo) 50/47/43 dBA
    Liquid / Gas 1/4" x 1/2"
    Weight 45 lbs
    Body Dimensions (W x D x H) 25.47" x 25.47" x 2" inches
    Panel Dimensions (W x D x H) 22.44" × 22.44" × 10.24" inches
    Energy Star AHRI Energy Star
    21 SEER Toshiba Compressor
    Outdoor Unit (condenser) specs

    Model Number



    Toshiba (GMCC)


    R410A (Pre-Charged)/1900g

    Cooling Capacity

    17500 BTU

    Heating Capacity

    18000 BTU

    Air Flow

    1200/950/750 m3/h

    Power Supply

    208-230 V / 60 Hz, 1Ph

    Input Power

    1400W (cooling) / 1440W (heating)

    Input Current

    6.5A (Cooling) / 6.66A (Heating)







    Maximum Fuse


    Sound Level


    Moisture Removal

    1.7 L/hr

    Min Operating Temperature

    - 15 C / 5 F

    Net Weight

    102 Lbs


    33.27 x 12.60 x 27.56 in

    Install Kit back to the top
    Install Kit Contents:
    • 15 Feet Flared Insulated Copper Tubing x 1
    • 15 Feet Pipe Insulation x 1
    • 15 Feet Flared Insulated Copper Tubing x 1
    • Drain Pipe (outdoor)
    • Defrost Wire
    • Wire Harness Between Indoor & Outdoor x 1
    • Remote Control w/ Wall Brackets & Batteries x 1
    Includes Install Kit Install Kit
    Inverter TechnologyTop

    DC Inverter Air Conditioners are the ultimate cooling technology of the HVAC field. They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. The current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result in different running speeds of the compressor. Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current. DC Inverter AC's bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power. Therefore, unlike conventional split Air Conditioners Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.

    Conventional compressors turn on and off to maintain the room temperature at desired level. This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off. Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling to maintain the desired temperature. The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly, Once the set temperature is reached, it slows down and adjust its capacity just to counter the heat loss or heat gain of the building. Constant temperature is maintained.

    Inverter Mini Split Air Conditioner Saves Money

    Inverter Mini Split Air Conditioners Are Energy Efficient & Save Money

    Installation Overview back to the top
    BASIC OVERVIEW: The installation of a ceiling cassette is much like that of a ductless mini split with the exception that instead of a wall mounted air handler, a ductless ceiling cassette mounts in the ceiling Usually as a flush mount or in a drop ceiling. The indoor unit (ceiling cassette) and outdoor unit (condenser) are connected to each other by means of refrigerant copper tubing and electrical cables that are routed through the ceiling and outside to the condenser outputs via a 2-3 inch hole. The compressor comes pre-charged with freon however, procedures such as conducting leak tests etc. are still important steps in ensuring proper functioning of a ceiling cassette system. Click to Download Installation Manual. *Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a ceiling cassette system. A certified HVAC technician must conduct / complete the installation to be eligible for product warranty. (See warranty details below > ) Installation Kit
    Ceiling Cassette Diagram
    Remote Controls back to the top
    *5 Year Compressor - 1 Year on all other Parts*  Registration card will be sent with unit, this card should be completed by an HVAC technician (installer).  Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship.  Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge.   The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed.  Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty).  If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 1 year from date of purchase or 5 years for the compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost.  Damaged / Defective product will be picked up and brand new exchange will be shipped out.  Download Manual - Warranty Polices >
    Available Accessories back to the top
    These multi-zone mini split units ship out of Missouri via YRC Freight or via a similar freight service, and under normal conditions, are loaded and in transit within 2 business days from payment receipt. Depending on where you are geographically located, transit time from this point varies, but typically amounts to 2-5 business days. Please provide a contact phone # upon checkout where recipient of order can be reached. SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order. This unit can only be shipped to addresses within the Contiguous USA (lower 48 states). Dual Zone Mini Split Air Conditioners Shipped To Your Home Or Business via YRC Freight

    Swap out Susp Ceiling-Floor Mount for Cassette: - $135

    This unit
    Swap out Susp-Ceiling Unit for 1 Wall Mount:  - $210
    Call Thermospace at 407-965-2133
