16 SEER: 4 Ton Quad-Zone Ductless Ceiling Split AC, Heat Pump: The 48000 BTU this Quad Zone INVERTER mini split with Ceiling Cassette can cool or heat FOUR separate zones (12000 x 4) for a total coverage area of over 2000 ft² (550 ft² x 4 areas). The ceiling cassette air handlers are discreetly recessed into a ceiling - only the grill is visible. Inverter technology provides the benefits of low operation temps, rapid cooling / heating, as well as maximum energy efficiency.

Home > Mini Split > Quad-Zone >

4 Ton Quad Zone Ceiling AC


Air Conditioners - Split AC's, Portable AC's, Air Cooler Source
Mini Split Air Conditioners
Search BY BTU Capacity:
Inverter Systems
Quint-Zone (5)
Energy Star
Temperature Control: Portable A/C's, Window A/C's, Air Coolers, Ductless Splits,
Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >
Air Purification: IONIZERS, HEPA Filters, UV-TION
Ionizers >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers
Humidifiers >
Dehumidifiers >
48000 BTU quad Zone Mini Split
Mini Split AC Heat Pump Inverter System

Indoor Units Remote Control Outdoor Unit warranty

Technical Data:
  • 48000 BTU Cooling Capacity: (12k x 4)
  • 48000 BTU Heat Pump Capacity: (12k x 4)
  • Quad-Zone Ceiling Cassette Setup
  • 1 Year Warranty on all Parts View Details >
  • 5 Year Warranty on Compressor View Details >

4 Ton Quad-Zone Ceiling: 12k+12k+12k+12k

Price: $3699.95 Free Shipping
  • Select your choice of lengths for each BTU :
  • Select to add wire

    *When all four air handlers are running simultaneously at full capacity,
    the total combined BTU output is limited to that of the outdoor condenser.

    Mini Split AC FeaturesTop

    mini split features Top Line Features:
    • Quad Air Handlers Mounts Discreetly in Ceiling
    • Intelligent Mechanical Defrosting.
    • Washable Filters - Biologically Active Enzyme.
    • Low Startup Temps - MAXIMUM EFFICIENCY.
    • Pre-charged w/ R-410A Freon For 25' [x3] of Piping.
    • Sleep Mode - 24 hour ON/OFF Timer - Memories.
    • Enhanced Copper Coil - Wide Angle Air Spread.
    • Over Current and Thermal Protection.
    • Flexible, Quick Installation - Easy Operation.

    Quad Zone Mini Split Features

    Mini Split AC SpecsTop

    12000 BTU Indoor Air Handler Specs: CLICK TO ENLARGE

    MITSUBISHI Compressor 16 SEER

    ETL LISTED R410A refrigerant Cooling & Heating

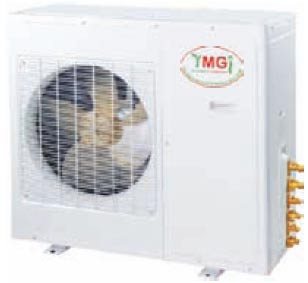

    spacer Outdoor Compressor Unit Specs: CLICK TO ENLARGE

    Pipe reducer

    Inverter TechnologyTop
    DC Inverter Mini Split AC Heat Pump WHAT IS DC INVERTER?

    DC Inverter Air Conditioners are the ultimate cooling technology of the HVAC field. They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. The current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result in different running speeds of the compressor. Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current. DC Inverter AC's bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power. Therefore, unlike conventional split Air Conditioners Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.

    Conventional compressors turn on and off to maintain the room temperature at desired level. This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off. Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling to maintain the desired temperature. The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly, Once the set temperature is reached, it slows down and adjust its capacity just to counter the heat loss or heat gain of the building. Constant temperature is maintained.

    DC Inverter Energy Efficient Heating & Cooling Mini Splits

    Inverter Mini Split Air Conditioner Saves Money

    Inverter Mini Split Air Conditioners Are Energy Efficient & Save Money

    Ductless Split InstallationTop
    BASIC OVERVIEW: The installation of a ceiling cassette is much like that of a ductless mini split with the exception that instead of a wall mounted air handler, a ductless ceiling cassette mounts in the ceiling Usually as a flush mount or in a drop ceiling. The indoor unit (ceiling cassette) and outdoor unit (condenser) are connected to each other by means of refrigerant copper tubing and electrical cables that are routed through the ceiling and outside to the condenser outputs via a 2-3 inch hole. The compressor comes pre-charged with freon however, procedures such as conducting leak tests etc. are still important steps in ensuring proper functioning of a ceiling cassette system. Click to Download Installation Manual. *Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a ceiling cassette system. A certified HVAC technician must conduct / complete the installation to be eligible for product warranty. (See warranty details below > ) Installation Kit

    Ceiling Cassette Diagram

    *5 Year Compressor - 2 Year on all other Parts* Registration card will be sent with unit, this card should be completed by an HVAC technician (installer). Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship. Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge. The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed. Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 2 year from date of purchase or 5 years for compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost. Damaged / Defective product will be picked up and brand new exchange will be shipped out. Download Manual - Warranty Polices >

    Mini Split ShippingTop
    These multi-zone mini split units ship out of Missouri via YRC Freight or via a similar freight service, and under normal conditions, are loaded and in transit within 2 business days from payment receipt. Depending on where you are geographically located, transit time from this point varies, but typically amounts to 2-5 business days. Please provide a contact phone # upon checkout where recipient of order can be reached. SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order. This unit can only be shipped to addresses within the Contiguous USA (lower 48 states). Quad Zone Mini Split Air Conditioners Shipped To Your Home Or Business via YRC Freight
    Dotted Line
    This unit
    Swap 1 Cassette for Susp. Ceiling Mount:  (+) $140
    Swap 2 Cassettes for Susp. Ceiling Mounts:  (+) $280
    Swap 3 Cassettes for Susp. Ceiling Mounts:  (+) $420
    Swap 4 Cassettes for Susp. Ceiling Mounts:  (+) $560
    Swap 1 Cassette for a Wall Mount:  (-) $100
    Swap 2 Cassettes for Wall Mounts:  (-) $200
    Swap 3 Cassettes for Wall Mounts:  (-) $300
    Swap 4 Cassettes for Wall Mounts:  (-) $400  > CLICK
    *If alternate air handler types are preferred, request invoice with preferred options upon checkout or contact us.

    Dotted Line

    Quad Zone Mini Split Air Conditioner
