16 SEER: 3 Ton Dual-Zone Ceiling Cassette AC - Heat Pump: The 36000 BTU Dual Zone INVERTER mini split AC with Ceiling Cassette can cool or heat TWO separate zones (2 x 18000 BTU) for a total coverage area of 1600 ft² (TWO 800 ft² areas). The Air handlers are discreetly recessed into a ceiling panel - only grill is visible. Inverter technology provides the benefits of low operation temps, rapid cooling / heating, as well as maximum energy efficiency. R410A Pre-charged - 2 X 25' Install kits Included.

Home > Mini Split > Dual-Zone >

3 Ton Ductless INVERTER AC

Air Conditioners - Split AC's, Portable AC's, Air Cooler Source
Mini Split Air Conditioners
Search BY BTU Capacity:
Inverter Systems
Quint-Zone (5)
Energy Star
Temperature Control: Portable A/C's, Window A/C's, Air Coolers, Ductless Splits,
Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Suspended Ceiling >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >
Air Purification: IONIZERS, HEPA Filters, UV-TION
Ionizers >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers
Humidifiers >
Dehumidifiers >
36000 BTU Mini Split
Indoor Unit Remote Control Outdoor Unit Installation Kit
 System Includes:
  • 36,000 BTU's Cooling Capacity - 18,000 x 2
  • 36,000 BTU's Heating Capacity  - 18,000 x 2
  • Dual-Zone Ceiling Cassette Setup
  • Outdoor Unit - Compressor
  • Digital Multi-function LCD Remote Control x 2
  • Installation Kits (connection wire, piping etc.) x 2

    3 TON Dual-Zone Ceiling AC (18K x 2)

    Price: $2899.45   Free Shipping



    Features back to the top
    mini split features Top Line Features:
    • Dual Air Handlers Mounts Discreetly in Ceiling
    • Intelligent Mechanical Defrosting.
    • Washable Filters - Biologically Active Enzyme.
    • Low Startup Temps - MAXIMUM EFFICIENCY.
    • Pre-charged w/ R-410A Freon For 25' [x2] of Piping.
    • Sleep Mode - 24 hour ON/OFF Timer - Memories.
    • Enhanced Copper Coil - Wide Angle Air Spread.
    • Over Current and Thermal Protection.
    • Flexible, Quick Installation - Easy Operation.
    Mini Split Features
    Specifications back to the top

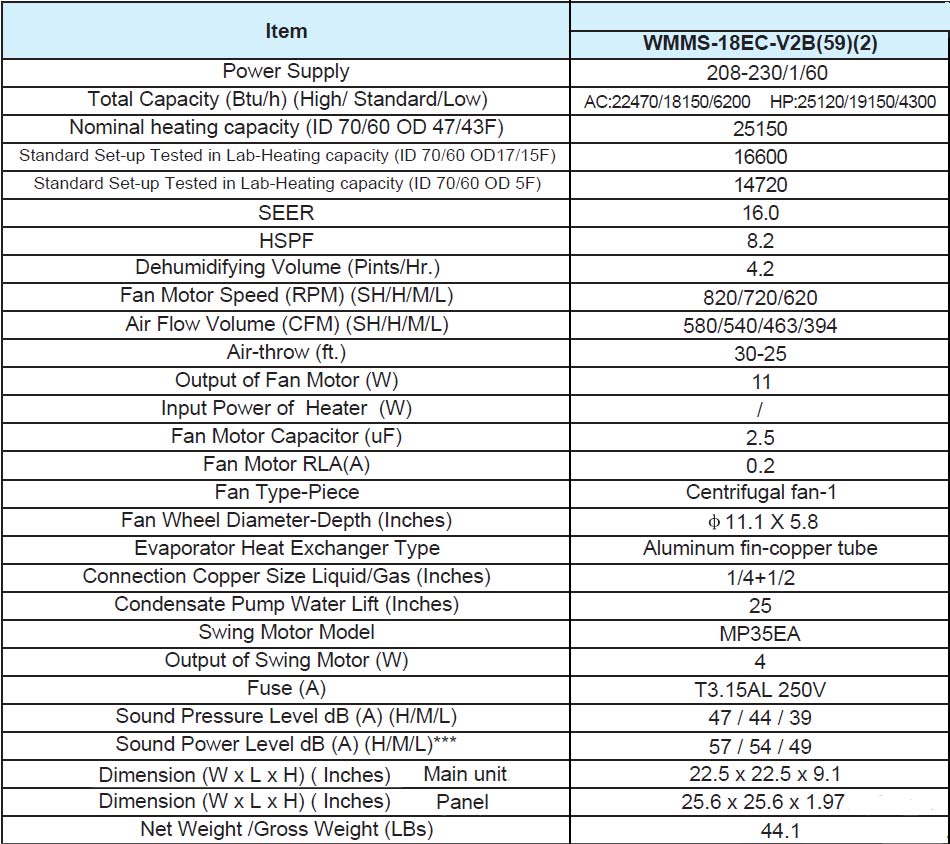

    Indoor Units (air handler) specs: CLICK TO ENLARGE
    MITSUBISHI Compressor 16 SEER
    ETL LISTED R410A refrigerant Cooling & Heating
    Outdoor Unit (compressor) specs CLICK TO ENLARGE
    Install Kit back to the top
     Install Kit Contents:
  • 25 Feet Flared Insulated Copper Tubing x 2
  • 25 Feet Pipe Insulation x 2
  • Drain Pipe (outdoor)
  • Wall Cross piping
  • Defrost Wire
  • Putty to seal piping / holes
  •   Includes Install Kit
  • Wire Harness Between Indoor & Outdoor x 2
  • Remote Control w/ Wall Brackets & Batteries x 2
  • Wire Harness Outside Unit to Circuit Breaker

  •   Install Kit
    Remote Controls back to the top
    DC Inverter Mini Split AC Heat Pump

    DC Inverter Air Conditioners are the ultimate cooling and heating technology of the HVAC field.  They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. As known, the current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result different running speeds of the compressor.  YMGI Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current.  DC Inverter air conditioners bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power.  Therefore, unlike conventional split Air Contioners/Heat Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.

    Conventional compressors turn on and off to maintain the room temperature at desired level.  This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off.  Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling or heating to maintain the desired temperature.  The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly. Once the set temperature is reached, it slows down and adjust its capacity to counter the heat loss or heat gain of the building. By this way it will maintain a constant temperature.

    DC Inverter Energy Efficient Heating & Cooling Mini Splits
    Inverter Split
    Installation Overview back to the top
    BASIC OVERVIEW:  The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall.  A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables.  The condensing unit comes pre-charged with Freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling for operation.  Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a mini split*  See Installation Tip.  A certified HVAC technician must conduct / complete the installation to be eligible for the warranty.  (See warranty details below > ) Installation Kit
    Ceiling Cassette Diagram
    Remote Controls back to the top
    *5 Year Compressor - 1 Year on all other Parts*  Registration card will be sent with unit, this card should be completed by an HVAC technician (installer).  Installation of a mini split must be completed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship.  Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge.   The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies are observed.  Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty).  If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge up to 1 year from date of purchase or 5 years for the compressor. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost.  Damaged / Defective product will be picked up and brand new exchange will be shipped out. Download Manual - Warranty Polices >
    Available Accessories back to the top

    These Mini Split units usually ship via SAIA Motor Freight (on truck) or some other freight service. These units ship out of Missouri and are in transit with 2 business days from payment receipt.  Depending on where you are geographically located, transit time is usually between 3 and 6 business days.  Please provide a contact phone# upon checkout where recipient of order can be reached.  SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order.  Only ships to the lower 48 Contiguous United States.

      Southeastern Freight
    DUAL Zone Mini Split Air Conditioner
    This unit
    Swap 1 Cassette for Susp. Ceiling Mount:  (+) $137
    Swap both Cassettes for Susp. Ceiling Mounts:  (+) $274
    Swap 1 Cassette for a for a Wall Mount:  (-) $110
    Swap both Cassettes for Wall Mounts:  (-) $220 : click
    *If alternate air handler types are preferred, request invoice with preferred options upon checkout or contact us.
