| System Includes: |
|
| 18,000 BTU INVERTER Cooling Capacity
18,800 BTU INVERTER Heat Pump
17.9 SEER - R410A PreCharge - INVERTER DC
Install Kit (connection piping, drain, remote etc
1 Year Part - 5 Year Compressor Warranty >>> |
|
|
|
|
| |
|
|
|
|
|
 |
|
| Top Line Features: |
|
ENERGY STAR Qualified!
Inverter Technology : 17.9 SEER / 8.9 HSPF
Pre-Charged with Eco-friendly R410A Refrigerant
18,000 - 19,000 BTU's of Turbo Cooling / Heating

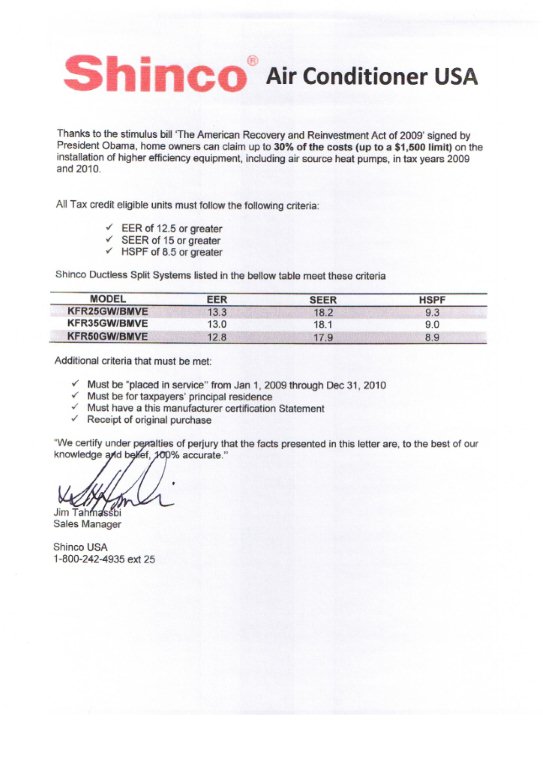

Qualifies for Tax Credit up to 30% installed Cost >>>
Low Ambient Temperature Operation

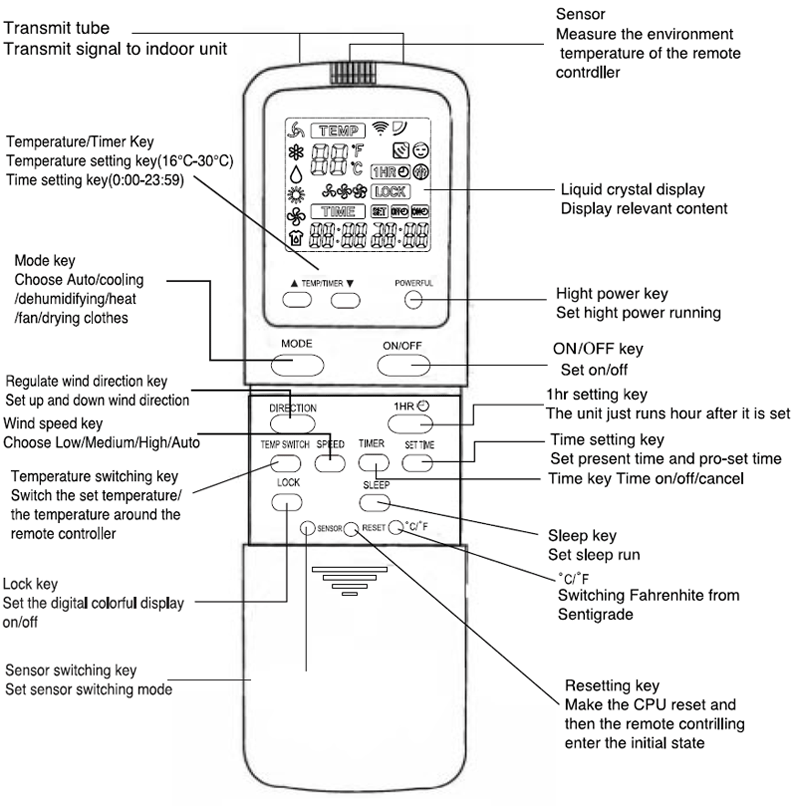

Sleep Mode - 24 hour ON/OFF Timer
Washable Particle Filter Purifies Air
1 Year Part - 5 Year Compressor Warranty >>>
Remote, Installation Kit & Lineset Included >>> |
|
|
|
 |
|
| Inverter Technology: |
|
 |
|
|
|
| System Specifications: |
|
| Cooling Capacity: |
18,000 BTU's |
| Heating Capacity: |
18,800 BTU's |
| Airflow: |
500 (m3 / hour) |
| Thermostat Settings: |
61° F - 86° F |
| Timer Settings: |
1 - 24 Hours |
| Moisture Removal: |
1.79 Liters / Hour |
| Inside Noise Output: |
39 dB(A) |
| Outside Noise Output: |
52 dB(A) |
| Filtration Media: |
Washable Filter Screen |
| Compressor Brand: |
Panasonic |
| Min Operating Range: |
- 10° C / 14° F |
| Refrigerant: (charge) |
R-410A (2.1 lbs) |
| Indoor (air handler) Dimensions: |
34.6" W x 8.6" D x 11.8" H |
| Indoor (air handler) Weight: |
26.5 lbs. |

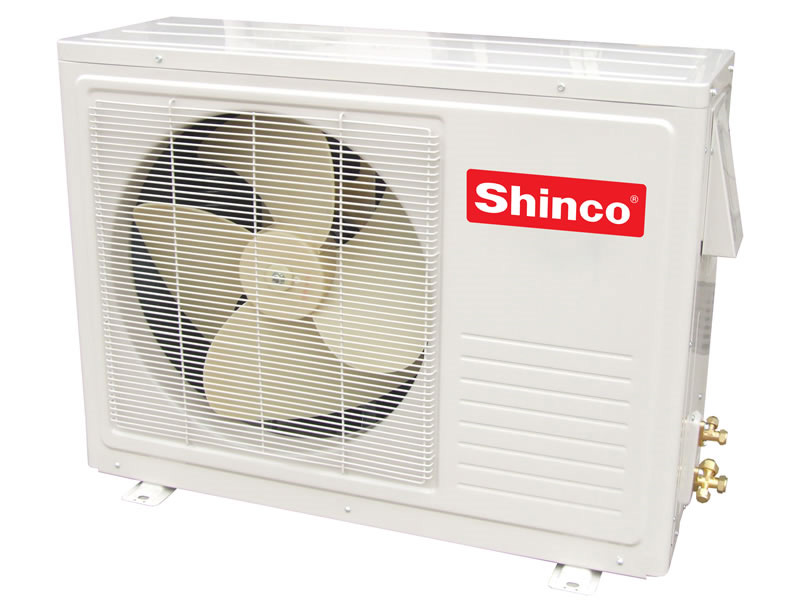

| Outdoor (condenser) Dimensions: |
34.1" W x 25.8" D x 28.1" H |
| Outdoor (condenser) Weight: |
117 lbs. |
| Inspections: |
ETL - CSA |
|
|
|
| Electrical Info: |
|
| Power Supply: |
230 VAC - 60Hz |
| SEER Rating: |
17.9 |
| HSPF Rating: |
8.9 |
| Power Consumption: (cooling) |
1420 Watts |
| Power Consumption: (heating) |
1747 Watts |
| Rated Current: (cooling) |
6.79 Amps |
| Rated Current: (heating) |
8.3 Amps |
| EER Rating: |
12.8 |
| Breaker Size: |
20 Amps |
|
|
|
| Piping - Install Kit Info: |
|
| Pipe Size (liquid / gas): |
1/4"- 1/2 |
| Tubing / Piping Included: |
11 Feet |
| Max Length: |
49 feet |
| Max Elevation: |
16.4 feet |
|
|
|
|
|
|
|
|
|
| Install Kit Contents: |
|
- 11 Feet Flared Copper Tubing
- 11 Feet Pipe Insulation
- Drain Pipe (outdoor)
- Wall Cross piping
- Binding Belt - Catchment Trough
- Remote Control Wall Bracket
- Wall Hole Block Putty & Insulated Tape
|
|
|
 |
 |
|
|
|
|
 |
|
|
|
| BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables. The condensing unit comes pre-charged with freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling. Click to Download Installation Manual. *Although the installation may seem easy to some, certain tools and experience is necessary to complete setup of a mini split* See Installation Tip. A certified HVAC technician must conduct / complete the installation to be eligible for the warranty. See warranty details below > |
|
 |
|
|
 |
|
|
|
|
|
| 5 YEAR COMPRESSOR WARRANTY - 1 YEAR PARTS WARRANTY. Details: Unit must be installed by a licensed HVAC (Heating, ventilating, and air conditioning) company to be eligible for product Warranty. Damage resulting from failure to use, install or maintain the product in a manner consistent with our/manufacturer's recommendations shall render the warranty void. Thermospace.com, at its option, may request a report from a qualified technician prior to honoring a warranty claim. We shall not be responsible for faulty installation, operation or maintenance of the product. It is the responsibility of each purchaser to determine whether the particular product is compliant with and permissible for use pursuant to the applicable rules, codes and/or regulations. if any, and suitable for particular and/or intended use and/or operation therein. Once a non defective unit is installed by a HVAC company, chances of anything going wrong with such unit is very slim. But worst case scenario, if you come across any issues, consumer can call the company that installed the unit (usually they will cover this FREE as it falls under installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge. If the compressor is defective, a BRAND NEW replacement will be shipped out. If the indoor unit is defective a BRAND NEW indoor unit will be sent out free of cost. (labor charges incurred will not be covered under this warranty) |
|
|
|
|
 |
|
SHIPS TO TO BOTH UNITED STATES AND CANADIAN LOCATIONS! |
|
 |
|
|
Our Mini Split systems ship via YRC FREIGHT or similar on-truck freight service and are palletized onto a single parcel. Transit time is usually between 4 to 7 business days from payment receipt depending on where you are geographically located. Please provide a contact phone# upon checkout (to be used for delivery purposes only). SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR Order. Failure to provide valid contact# will delay order.
For U.S. orders, unit will ship out of Gardena, CA. Canadian Orders will ship out of Saint-Leonard, Quebec. |
|
|
 |
|
|
 |
|
|
 |
|
