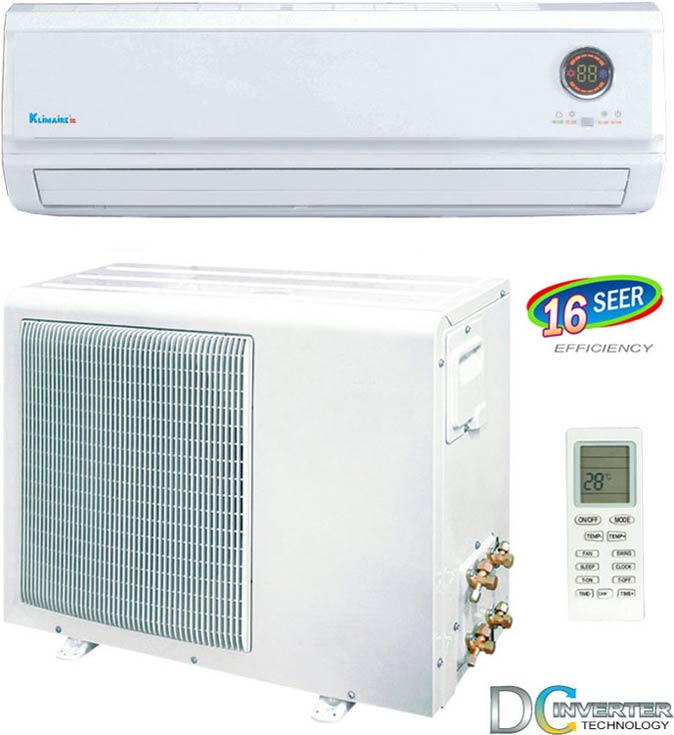

Klimaire KSIB018-H216 18000 BTU Inverter Split AC

The 16 SEER Klimaire KSIB018-H216 - 18000 BTU Inverter Mini split AC with heat pump is a great cost efficient system for cooling areas up to 750 ft². Like any AC system, you need to know how many BTUs are needed for the area you are trying to cool - heat. A mini split air conditioner is very quiet and efficient, but it is more expensive than a window or portable system. Since they are ductless, the mini split avoid the energy losses associated with the ductwork of central forced systems

Home > Mini Splits > 1.5 Ton >

18000 BTU INVERTER Split: KSIB

Home - About - FAQ - Site Map - Contact

Search BY BTU Capacity:

Cooling & Purification

Cooling, Heating &
Air Purification

Portable AC's >
Mini Wall Splits >
Ceiling Cassettes >
Central AC's >
Window AC's >
Air Coolers >
Space Heaters >

Ionizers >
HEPA >
UV/Tion >
Supplies >
Humidity Control: Humidifiers, Dehumidifiers

Humidifiers >
Dehumidifiers >

System Includes:

Indoor Unit - Air Handler

Outdoor Unit - Compressor

Digital, Multi-function LCD Remote Control

Installation Kit + Product Manuals

DC INVERTER - 16 SEER Cooling / Heating

18000 BTU Inverter Mini Split - Heat Pump
Price:	$1379.45

Top Line Features:

Maximum Efficiency: 16 SEER - DC Inverter Technology

Pre-Charged with Eco-friendly R-410a Refrigerant

Better Winter Heating Performance Benefits

18,000 - 20,000 BTU's of Turbo Cooling / Heating

Low Operation Temperatures (< 5° F)

Saves labor cost: fast coupling pipe for R410A & Power

Active carbon filter for clean air circulation

Automatic self-diagnosis system for easy maintenance

Multi function LCD-screen remote for easy operation

Solves thermal shock problem as with conventional ACs

System Specifications:

Heating Capacity:	20,000 BTU's
Cooling Capacity:	18,000 BTU's
Application Area:	600 - 800 Square Feet
Airflow Volume:	470 (CFM)
Moisture Removal:	1.2 Liters / hour
Operating Range:	5° - 110°F
Thermostat Range:	62° F - 86° F
Fan Motor Speed: (Hi-M-LO)	1350 /1250 / 1150 RPM
Indoor Sound Pressure Level:	44 – 47 – 50 dB(A)
Indoor Sound Power Level:	54 – 57 – 60 dB(A)
Outdoor Sound Pressure Level:	57 dB(A)
Outdoor Sound Power Level:	67 dB(A)
Filtration:	Activated Carbon
Compressor Type:	Scroll
Compressor Brand:	Sanyo
Refrigerant / Charge:	prec-R410a / 3.9 lbs
Defrost Type:	Auto-Defrost
Dimensions - Indoor Unit:	40.1" W x 9" D x 12.2" H
Weight - Indoor Unit:	28.6 Pounds
Dimensions - Outdoor Unit:	37.3" W x 13.4" D x 26.9" H
Weight - Outdoor Unit:	130 Pounds

Electrical Info:

Power Supply (VAC):	230/208 - 60Hz
SEER: (Energy Efficiency)	16
HSPF (Btu/w.h):	8.5
Power Input: (cool / heat)	1350 / 1800 Watts
Rated Power Input:	2440 Watts
Rated Current (Cooling):	10.6 Amps
Compressor L.R.A.:	27 Amps
Compressor RLA:	6.54 Amps
Compressor Power Input:	1266 Watts

Piping - Install Kit Info:

Connection Method:	Flare
Tubing / Piping Included:	16 Feet
Pipe Size (Liquid Side - Gas Side):	3/8" - 5/8"
Max Distance:	49 feet
Max Height:	26 feet

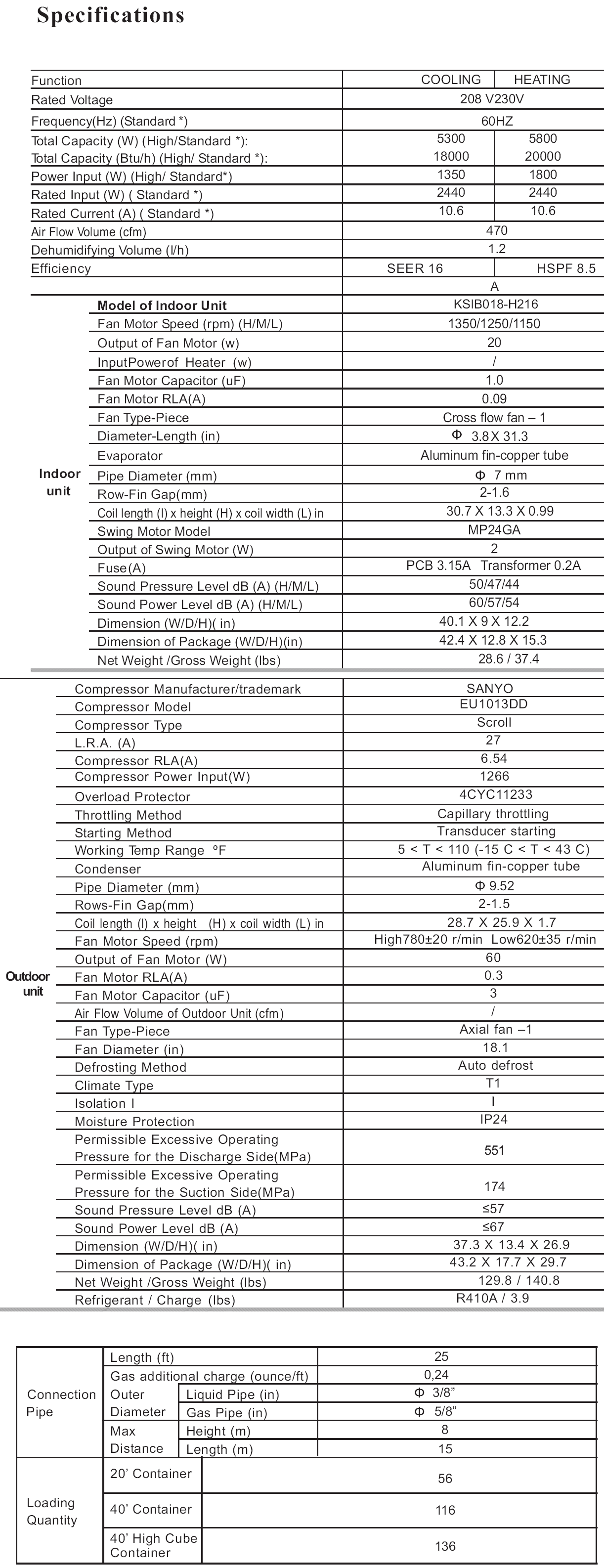

Click to View Detailed Spec Sheet >

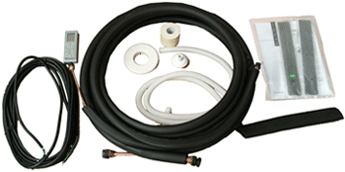

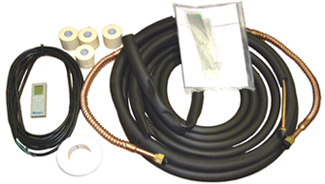

Install Kit Contents:

16 Feet Flared Refrigeration Tubing
Installation Plate
Clip Ancors w/ Mounting Screws
Drain Elbow (outdoor)
Wall Cross pipe
Drain Seal
Remote w/ sleep timer
Remote Wall Bracket

WHAT IS DC INVERTER?

DC Inverter Air Conditioners are the ultimate cooling and heating technology of the HVAC field. They are called "DC inverter" because the alternative current (AC) is converted to Direct Current (DC) then, direct current inverted back to Alternative current with desired frequency. As known, the current supplied through the wall outlet has fixed frequency which is 60 Hertz. Different frequencies supplied to the compressor will result different running speeds of the compressor. Klimaire Inverter control systems use Pulse Amplitude Modulation (PAM) that is the most advanced and energy efficient method of inverting the current. DC Inverter air conditioners bear special compressors that their speed could be changed by increasing or decreasing the frequency of the supplied power. Therefore, unlike conventional split Air Conditioners/Heat Pumps which cycle between on and off repeatedly, the DC Inverter control system will monitor the room temperature and adjust the compressor speed automatically.

Conventional compressors turn on and off to maintain the room temperature at desired level. This will result compressor to draw tremendous energy each time it starts up. This will also reduce the life-span of the compressor and other components that are turning on and off. Once a conventional system is running, it runs at its maximum speed, consuming the maximum amount of energy in order to produce the maximum of cooling or heating to maintain the desired temperature. The system will then cycle between on and off in an effort to maintain this temperature. When a DC Inverter compressor initially starts up, it runs with a higher speed to bring the room temperature to desired level rapidly, Once the set temperature is reached, it slows down and adjust its capacity just to counter the heat loss or heat gain of the building. By this way it will maintain a constant temperature.

BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables. The condensing unit comes pre-charged with R410A Freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling for operation. *Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a mini split* See installation Manual. It is highly advised a certified HVAC technician conduct / complete installation to be eligible for warranty. (See warranty details below > )

This Mini Split unit ships via FEDEX FREIGHT (on truck) and are divided between 3 parcels per system (install kit - condenser - air handler). These units ship out of So. Florida and are in transit with 1-2 business days of payment receipt. Depending on where you are geographically located, transit time is usually between 4 and 7 business days. Please provide a contact phone# upon checkout where recipient of order can be reached at. SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR PARCEL(S). Only ships to the lower 48 Contiguous United States.

Click to Download Warranty Details: A mini split system must be installed by a licensed HVAC (Heating, ventilating, & air conditioning) company to ensure any issues encountered in the future are not due to improper installation / workmanship. Even though mini split setup is below the expertise requirements of central AC systems, these are not "plug-n-play" units that can be properly installed without certain tools any prior HVAC - electrical knowledge. The installation includes electrical, gas, and refrigerant connections and generally regulated by a multiple sets of laws, codes and guidelines, at the federal, state and local levels. The failure to properly install HVAC equipment can raise personal safety and performance concerns. Warranty service - troubleshooting is provided through the contractor / installer and will be upheld as long as policies within Warranty spreadsheet are observed. Once a non-defective unit is installed by a HVAC company, chances of anything going wrong are very slim and almost all contractors will guarantee there workmanship and provide future service free of charge (installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced, the part will be sent free of charge. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost. Damaged/Defective product will be picked up and a brand new exchange will be shipped out.
