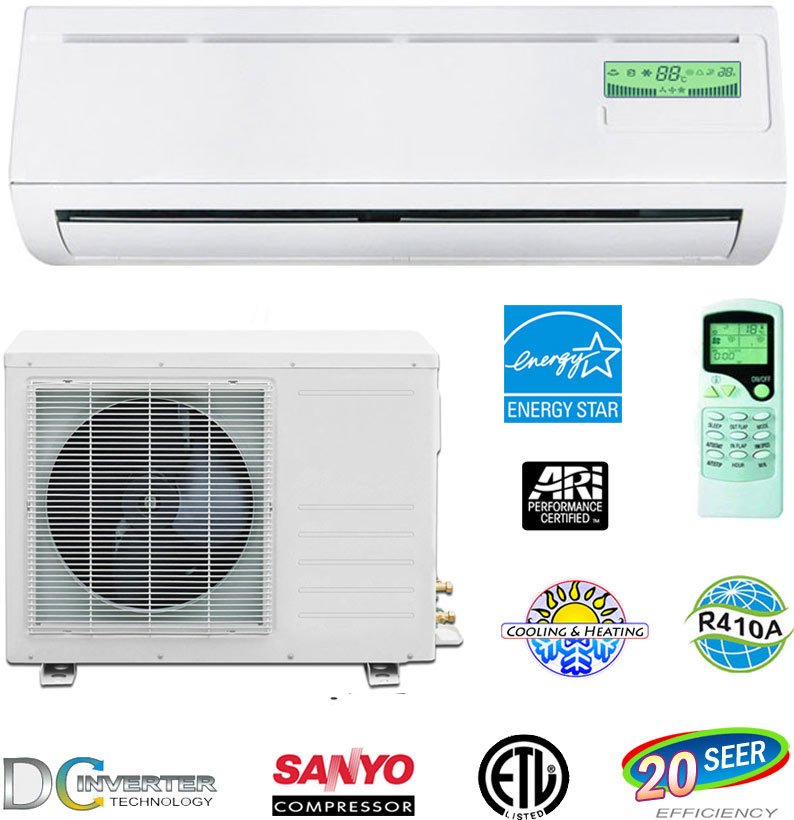

| System Includes: |
|
| 12,000 BTU Cooling - 15,500 BTU Heat Pump
16,000 BTU+ INVERTER Capacity
Energy Star - R410A - INVERTER DC
Install Kit (connection wire, piping, remote etc.)
Best Warranty in the Industry >>> |
|
|
|
|
| |
|
|
|
|
|
 |
|
| Top Line Features: |
|
ENERGY STAR Qualified!
Maximum Efficiency: 19 SEER - Inverter Technology
Pre-Charged with Eco-friendly R410a Refrigerant
12,000 - 16,000 BTU's of Turbo Cooling / Heating
Low Ambient Temperature Operation
Qualifies for AHRI Federal Tax Credit
Sleep Mode - 24 hour ON/OFF Timer
Restart IC: Auto Restart Following Power Outage
Controlled with Wireless Remote Control 1 Yr in House Warranty - 3 Yr Parts - 5 Yr Comp. >>> |
|
|
|
|
|
| Inverter Technology: |
|
 |
|
 |
|
|
|
| System Specifications: |
|
| Cooling Capacity: |
12,000 BTU's |
| Inverter Capacity Range (Cooling): |
5,000 – 16,500 BTU's |
| Heating Capacity: |
12,500 BTU's |
| Inverter Capacity Range (Heating): |
5,000 – 16,500 BTU's |
| Airflow (L-M-H): |
341 - 382 - 315 (cfm) |
| Moisture Removal: |
1.58 Pints / Hour |
| Operating Range: (Cool) |
5° – 131°F |
| Operating Range: (Heat) |
- 4° – 109°F |
| Thermostat: |
61° F – 88° F |
| Inside Noise Output: |
35 - 38 - 42 dB(A) |
| Outside Noise Output: |
57 dB(A) |
| Outside Fan Speed: |
100 – 900 RPM |
| Indoor Fan Speeds (3 + Auto): |
750 - 900 - 1000 RPM |
| Compressor Type: |
Sanyo |
| Refrigerant: |
R-410A |
| Indoor (air handler) Dimensions: |
39" W x 11" D x 14 ¼" H |
| Indoor (air handler) Weight: |
31 lbs. |
| Outdoor (condenser) Dimensions: |
39 ⅛" W x 16 ⅜" D x 26 ¾" H |
| Outdoor (condenser) Weight: |
106 lbs. |
|
|
|
| Electrical Info: |
|
| Power Supply: |
115 VAC - 60Hz |
| HSPF: |
10.1 |
| SEER: (Energy Efficiency) |
19.0 |
| Power Use (Cool): Rated/Max |
0.862 / 1.236 KW |
| Power Use (Heat): Rated/Max |
1.19 / 1.496 KW |
| Current (Cool): Rated/Max |
7.53 / 10.8 Amps |
| Current (Heat): Rated/Max |
10.4 / 13 Amps |
| Max Overload Protection: |
20 Amps |
| EER Cooling / COP Heating |
13.65 / 5.8 |
|
|
|
| Piping - Install Kit Info: |
|
| Connection Method: |
Flare |
| Max Pipe Length: |
82 ft. |
| Pipe Size: |
1/4" - 1/2" |
| Tubing / Piping Included: |
25 Feet |
| Service Port Connection: |
5/16 in. |
| Max Elevation: |
33 ft. |
|
|
|
|
|
|
|
| Install Kit Contents: |
|
- 25 Feet Flared Insulated Copper Tubing
- 25 Feet Pipe Insulation
- 4 Rubber Pads (outdoor)
- Drain Pipe (outdoor)
- Wall Cross pipeing
- Defrost Wire
- Remote Control with Wall Bracket
- Wire Harness Between Indoor & Outdoor
- Wire Harness Outside Unit to Circuit Breaker
|
|
|
|
 |
|
|
|
|
 |
|
|
|
| BASIC OVERVIEW: The indoor unit is hung like a picture frame approximately 6 - 8 feet above the floor usually on an exterior wall. A 2-3 inch hole must be made behind the indoor unit in the exterior wall to run the refrigerant copper tubing, electrical wires and the condensate drain to the outside unit. The indoor unit and outdoor unit are connected to each other by means of refrigerant copper tubing and electrical cables. The condensing unit comes pre-charged with R410A Freon however, the lines still need to be vacuumed to evacuate the excess Nitrogen prior to the final coupling for operation. *Although the installation may seem easy to some, certain tools and experience is necessary to complete installation of a mini split* A certified HVAC technician must conduct / complete the installation to be eligible for the warranty. (See warranty details below > ) |
|
 |
|
|
 |
|
|
|
|
|
 |
|
| Details: Unit must be installed by a licensed HVAC (Heating, ventilating, and air conditioning) company to be eligible for in-house Warranty. If you receive a damaged or defective product, a replacement unit will be sent out Free of cost. Damaged/Defective product will be picked up and a brand new exchange will be shipped once notified. Once a non defective unit is installed by a HVAC company, chances of anything going wrong with such unit is very slim. But worst case scenerio, if you still come across any issues, consumer can call the company that installed the unit (usually they will cover this FREE as it falls under installation warranty). If it was determined that the unit is not functioning due to a defect and needs to be replaced , the part will be sent free of charge. If the compressor is defective, a BRAND NEW replacement will be shipped out. If the indoor unit is defective a BRAND NEW indoor unit will be sent out free of cost. After installation warranty ends, we will also pay for the labor to replace the part for up to a year from the date of purchase. A flat rate chart for labor fee payment by checking the rates for these types of repairs. VIEW NO HASSLE WARRANTY SPREADSHEET |
|
|
|
|
Our Mini Split units ship via ESTES EXPRESS or similar on-truck freight service and are divided between 3 parcels per system. These larger units take 1-2 days to process and get into transit. Depending on where you are geographically located, transit time is usually between 4 and 7 business days. Please provide a contact phone# upon checkout where recipient of order can be reached at. SOMEBODY MUST BE ON SITE TO ACCEPT / SIGN FOR PARCEL(S). You will be contacted if nobody is available at delivery location. If nobody can be available to accept package on arrival date, delivery can be re-scheduled through AIT. Only ships to the lower 48 Contiguous United States. |
|
 |
|
|
|
|
 |
|
Adjustable wall hanging bracket kit for the outdoor condensing unit. *NOT INCLUDED*
These brackets allow for easy servicing of the outdoor unit while giving the image of a sophisticated, appealing and professionally installed system. The brackets also allow for your air conditioning system to be installed in more convenient locations and at various heights were a traditional installation may not be an option or may be difficult. These brackets may be used for all 3/4 ton - 2 ton mini split installations. The kit is made from 16 gauge steel known for resisting bullets at up to 200 miles per hour.
PRICE: $46.00 per bracket. |
|
 |
| |
|
 |
| |
|
|
